Nitto Seiko Mass Flow Meter

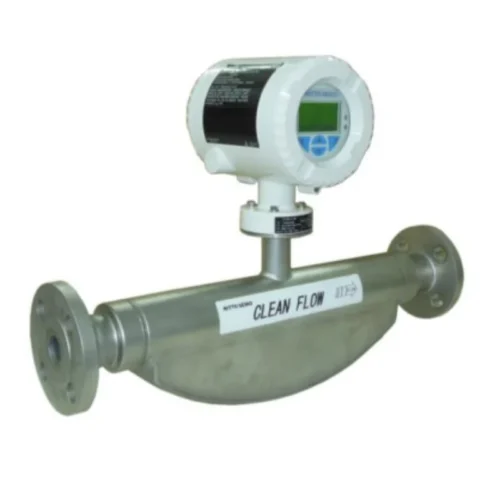

A mass flow metre called CLEAN FLOW achieves great performance and high dependability. By sensing the phase difference created by Coriolis in the measuring tube, it is able to measure mass flow directly. An easy-to-use capacitance touch panel is a feature of the high-functioning transmitter. A variety of indication articles can be put on the three LCD lines.
Description
Reviews (0)
- It can measure mass flow directly, it is not affected temperature, pressure, viscosity, density, or flow distribution due to its measurement
- Compact design
- It does not need special fixture. Easy
- New type measuring tube realizes low pressure
- Various indication article by 3 line
- Good visibility by Buck-light
- Plug-in card can add out/input easily. (Option)
Sensor
| Size | 015 | 025 | 050 | 080 | 100 | 150 | ||
| Nominal diameter | 10A, 15A, 20A, 25A, 40A, 50A, 65A, 80A, 100A, 150A, 200A | |||||||
|
Connection end |
JIS10K, 20K
ASME/ANSI 150, 300, 600 JPI 150, 300, 600 DIN PN16, 40, 63 Tri-clamp |
|||||||
| Fluid | Liquid/Gas | |||||||
| Flow range | 0 ～ 860,000 Kg/h (6 type) | |||||||
| Accuracy |
Volume |
Liquid |
General: Mass flow ±0.4%
Volume flow ±0.4% High accuracy: Mass flow ±0.15% (±0.1%option) Volume flow ±0.15% |
|||||
| Gas | General: Mass flow ±1.0%
High accuracy: Mass flow ±0.5% |
|||||||
| Density | Liquid | General: 0.010kg/L
High accuracy: 0.002kg/L (0.001kg/L option) |
||||||
|
Temperature |
General: -50 ～ 160 ℃
High accuracy: -50 ～ 205 ℃ Explosion-proof type is depending on the specification |
|||||||
| Pressure | Depending on the connection end | |||||||
| Wetted parts material | Stainless steel (Standard), Alloy C (Option) | |||||||
| Explosion-proof | ATEX / IECEx, cFMus,
TIIS (Applying) |
|||||||
Transmitter
| Power | 100 ～ 240V AC, 50/60Hz
11 ～ 30V DC |
| Power consumption | 20W |
| Protection level | Unit type : IP65 / IP67, NEMA 4X
Remote type: IP65 / IP67 / IP68 (Sensor only, Immersion depth 5m), NEMA 4X |
| Housing material | Aluminum
Stainless (Remote type: Option) |
|
Output signal |
Analog: 4-20mA DC (Active mode or Passive mode)
Digital: 2 points (Pulse or switch) (Passive mode) HART (Protocol Ver. 7.1) |
| Dumping | 0.8 sec. (Avilable setting 0.2 ～100 sec) |
| Low cut-off | 1% of Max. flow rate. (Available setting 0～5%) |
| Transmission distance | Max. 200m (Remote type) |
Liquid mesurement
| Size | 015 | 025 | 050 | 080 | 100 | 150 | |
| Flow range | MASS flow[kg/h] | 0～8,000 | 0～35,000 | 0～90,000 | 0～250,000 | 0.～560,000 | 0～860,000 |
| Volume flow [L/h]（※1） | 0～8,000 | 0～35,000 | 0～90,000 | 0～250,000 | 0.～560,000 | 0～860,000 | |
| （※1）Volume flow is according to the 1g/mL of density. In case of other than 1mg/mL Volume flow = Mass flow / Density. | |||||||
| Zero-stability [kg/h] | 0.64 | 2.16 | 7.2 | 20 | 41.6 | 68.8 | |
Basic accuracy
| Model | 430 (General type) | 450 (High accuracy type) |
|
Mass flow (Liquid) |
±0.4％
±0.25％ (Option) ±0.20% (Option) |
±0.15％
±0.10％ (Option) |
| Mass flow (Gas) | ±1.0％ | ±0.5％ |
|
Volume flow |
±0.4％
±0.25％ (Option) ±0.20% (Option) |
±0.15％ |
| Repeatibility (volume) | Refer to below table | |
|
Density (Liquid) |
0.010kg/L | 0.002kg/L
0.001kg/L |
|
Repeatibility (density) |
0.002kg/L | 0.002kg/L
0.001kg/L |
Measuring accuracy
| Max. measuring accuracy | Repeatability | ||
|
1 |
 |
±General accuracy |
±1/2×General accuracy |
|
2 |
 |
±（Zero-stability/Measured value）×100％ |
±1/2×（Zero-stability/Measured value）×100％ |
In accordance with EN 60529：IP65/IP67, NEMA4X
- Vibration
In accordance with EN 60068-2
10～58Hz, Max deflection 0.15mm（Peak load） 58～150Hz, Max. acceleration 2G（Peak load）
- Ambient temperature
Standard：-20～70℃ Option：-40～70℃
Note) When operating below -20℃, visibility of the LCD display may be worse.
- Signal cable (Remote type: between sensor and transmitter) Impedance 100～200Ω
Withstand voltage 120V Outer diameter 6～12mm
Cable design 4 core shielded cable (2 wire pairs as a star-quad cable) Max. signal cable length
| 0.25mm2 | ： | 50m |
| 0.34mm2 | ： | 100m |
| 0.50mm2 | ： | 150m |
| 0.75mm2 | ： | 200m |
Power
| AC Power Terminal
Operating voltage Power consumption |
：
： ： |
L／N
100～240VAC 50/60Hz 20VA |
| DC Power Terminal | ： | 1+／2- |
| Operating voltage | ： | 11～30VDC |
| Power consumption | ： | 20W |
Output
Standard output
Current output
| Current output | Active mode | Passive mode |
| Terminal | Uco(+)／32(-) | 31(+)／32(-) |
| Output signal | 4～20mADCor4～12～20mADC Switchable | 4～20mADC |
| Load resistance | 250～300Ω | 250～600Ω |
| Source voltage | － | 12～30V |
| Measuring error | 0.1% or less of measured value | |
Digital output
| Digital output | Pulse/frequency output (passive) | Binary output (passive) |
| Terminal | 41(+)／42(-)、51(+)／52(-) | 41(+)／42(-)、51(+)／52(-) |
| Output “closed” | Voltage 3VDC or less 2.5kHz or less：2～30mA
More than 2.5kHz：10～30mA |
Voltage 3VDC or less 2～30mA |
| Output “open” | Voltage 16～30VDC 0.2mA or less | Voltage 16～30VDC 0.2mA or less |
| Max. frequency | 10.5kHz | － |
| Pulse width | 0.1～2,000ms | － |
Option output
Option (by plug-in card)
Passive current output (red)
| Terminal | V1(+)／V2(-)、V3(+)／V4(-) | The plug-in card can be used in slot OC1 or OC2 |
| Output signal | 4～20mA | |
| Load resistance | 250～600Ω | |
| Source voltage | 12～30VDC | |
| Measuring error | 0.1% or less of measured value |
Digital output (green): Binary output (Passive)
| Terminal | V1／V2、V3／V4 | The plug-in card can be used in slot OC1 or OC2 |
| Output “closed” | Voltage 3VDC or less 2～30mA | |
| Output “open” | Voltage 16～30VDC 0.2mA or less |
Digital input (Yellow)
| Terminal | V1(+)／V2(-)、V3(+)／V4(-) | The plug-in card can be used in slot OC1 or OC2 |
| Input “ON” | Voltage 16V～30VDC | |
| Input “OFF” | Voltage 3VDC or less | |
| Internal resistance | 6.5kΩ |
24VDC Power supply (blue)
| Terminal | V1(+)／V2(-) | The plug-in card can be used in slot OC1 only. |
| Function | For active connection of passive outputs | |
| Output voltage | 24VDC at 0mA 17VDC at 25mA | |
| Load rating | 25mA, permanently short
circuit-proof |
The possible combination of plug-in cards
| Output code | Additional output code | Slot OC1 Terminals V1 / V2 | Slot OC2 Terminals V3 / V4 | |
| Output 1 | Output 2 | |||
| G0 | — | — | — | — |
| G1 | × | — | 24 V DC power supply (blue) | — |
| G2 | — | × | — | Passive current output, 4～20 mA (red) |
| G3 | × | × | Passive current output, 4～20 mA (red) | Passive current output, 4～20 mA (red) |
| G0 | DRT | DSN | 24 V DC power supply (blue) | Passive digital input (yellow) |
| G0 | DRT | DSG | 24 V DC power supply (blue) | Passive digital output (green) |
| G0 | DRT | DSA | 24 V DC power supply (blue) | Passive current output, 4～20 mA (red) |
| G0 | DRN | — | Passive digital input (yellow) | — |
| G0 | DRN | DSG | Passive digital input (yellow) | Passive digital output (green) |
| G0 | DRN | DSA | Passive digital input (yellow) | Passive current output, 4～20 mA (red) |
| G0 | DRG | DSN | Passive digital output (green) | Passive digital input (yellow) |
| G0 | DRG | DSA | Passive digital output (green) | Passive current output, 4～20 mA (red) |
- Indication contents
Mass flow, Volume flow, Density, Temperature, and any others (Available for select).
4 kind of monitor for operator can be set, and it can indicate several measuring result simultaneously. Indicator has 3 line LCD, and variety of indication is available.
- Operation
Operated by capacitance touch panel through the glass is available. Set according to the menu by 4 operation keys.
- Standard output
Analog output: 1 point (4～20mADC/HART7） Digital output: 2 points (Pulse, frequency)
- Optional plug-in cards (for additional output)
The transmitter has two slots in which plug-in cards can be inserted to provide additional inputs and outputs.
The slots are located on the transmitter motherboard and can be accessed after removing the front housing cover.
