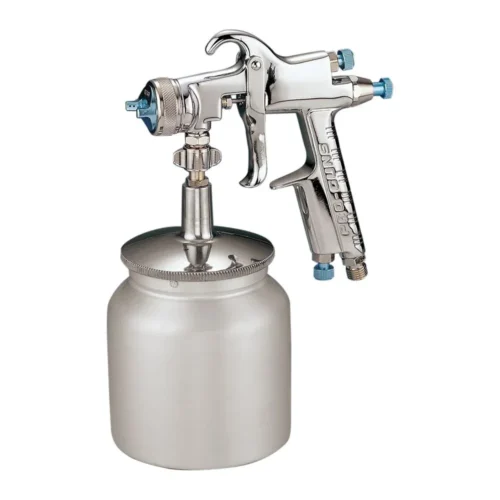

Prowin K-600S Air Spray Gun
Spray Gun is mainly applied for car refinishing, House decorating, industrial/construction purpose, tanning, wood working, etc.
Prowin Tools Company’s Spray Gun is produced for excellent atomization and pattern; suitable for both oil and water-based paintings. Nozzle and Needle are precisely made of Stainless Steel for superb performances and long life.
Prowin Tools Company’s Spray Gun is produced for excellent atomization and pattern; suitable for both oil and water-based paintings. Nozzle and Needle are precisely made of Stainless Steel for superb performances and long life.
Description
Conventional suction type spray gun, qualified for painting work on construction or industrial purpose.
Equipped with a 700c.c. aluminum siphon cup, a spanner and a cleaning brush. 1,000c.c. Aluminum cup is under request.
|
Specification
|
Turn – up Kit
|
|||||
|---|---|---|---|---|---|---|
|
Model No
|
Nozzle Size
|
Fluid Output
|
Pattern Width
|
Air Consumption
|
Model No
|
Nozzle Size
|
|
K-600S-08
|
0.8 mm
|
140 ml
|
290 mm
|
240 l/min
|
SG008-600-08
|
0.8 mm
|
|
K-600S-11
|
1.1 mm
|
150 ml
|
300 mm
|
240 l/min
|
SG008-600-10
|
1.1 mm
|
|
K-600S-13
|
1.3 mm
|
145 ml
|
300 mm
|
240 l/min
|
SG008-600-13
|
1.3 mm
|
|
K-600S-14
|
1.4 mm
|
150 ml
|
300 mm
|
240 l/min
|
SG008-600-14
|
1.4 mm
|
|
K-600S-18
|
1.8 mm
|
180 ml
|
310 mm
|
240 l/min
|
SG008-600-18
|
1.8 mm
|
|
K-600S-20
|
2.0 mm
|
200 ml
|
320 mm
|
240 l/min
|
SG008-600-20
|
2.0 mm
|
| • Type : Suction • Cup Capacity : 700 c.c. or 1000 c.c • Fluid Inlet : 1/4″ or 3/8″ • Air Inlet : 1/4″ |
• Working Pressure : 30~43 psi • Standard Nozzle : 1.8 mm • Gun Weight : 315 gs |
|||||
