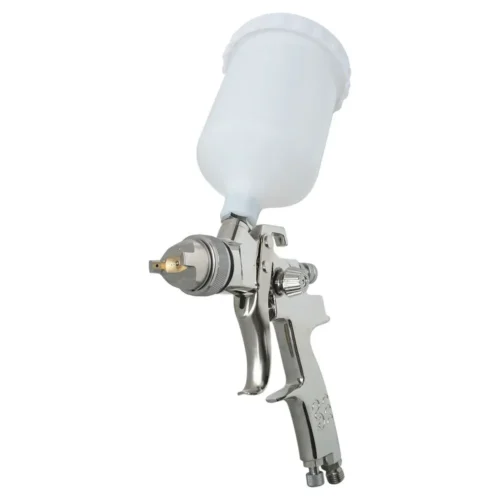

Prowin K-800M Air Spray Gun
Spray Gun is mainly applied for car refinishing, House decorating, industrial/construction purpose, tanning, wood working, etc.
Prowin Tools Company’s Spray Gun is produced for excellent atomization and pattern; suitable for both oil and water-based paintings. Nozzle and Needle are precisely made of Stainless Steel for superb performances and long life.
Description
K-800M is a conventional gravity spray gun. It’s a reliable high pressure Spray gun for top coating quality. Containing accessories 600c.c. Gravity Nylon Cup, Cleaning Brush, Spanner and a Paint Filter.
|
Specification
|
Turn – up Kit
|
|||||
|---|---|---|---|---|---|---|
|
Model No
|
Nozzle Size
|
Fluid Output
|
Pattern Width
|
Air Consumption
|
Model No
|
Nozzle Size
|
|
K-800M-13
|
1.3 mm
|
190 ml
|
265 mm
|
190 l/min
|
SG008-800M-13
|
1.3 mm
|
|
K-800M-14
|
1.4 mm
|
210 ml
|
270 mm
|
190 l/min
|
SG008-800M-14
|
1.4 mm
|
|
K-800M-15
|
1.5 mm
|
250 ml
|
270 mm
|
200 l/min
|
SG008-800M-15
|
1.5 mm
|
|
K-800M-17
|
1.7 mm
|
300 ml
|
275 mm
|
200 l/min
|
SG008-800M-17
|
1.7 mm
|
|
K-800M-20
|
2.0 mm
|
350 ml
|
280 mm
|
200 l/min
|
SG008-800M-20
|
2.0 mm
|
|
K-800M-25
|
2.5 mm
|
400 ml
|
280 mm
|
200 l/min
|
SG008-800M-25
|
2.5 mm
|
|
• Type : Gravity
• Cup Capacity : 600 c.c. • Fluid Inlet : M16×1.5P • Air Inlet : 1/4″ |
• Working Pressure : 30~43 psi
• Standard Nozzle : 1.4 mm • Gun Weight : 616 gs |
|||||
