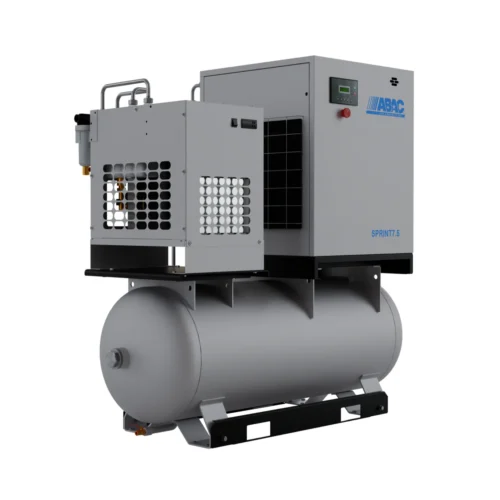

ABAC SPRINT7.5-TMDD Rotary Screw Compressor + Dryer + Tank 270L

ATLAS COPCO GROUP

• Air Delivery: 840 L/min (30 cfm)
• Working Pressure: 10 bar / 145 psi
• Motor: 10 HP (7.5 kW)
• Power Supply: 3Ph/400V/50Hz
• Noise Level: 68 db(A)
• Air outlet connection: 3/4″
• Dimension (LxWxH): 1577x772x1491 mm
• Weight: 360 kg

Features:

• Plug and play: One stop installation provides total solution for customers application.
• Easy serviceability: Design in quick service access and easy maintenance.
• Easy installation: Compared with traditional split type air compressor, the integrated air compressor is simpler in installation process, reducing the installation workload and the required piping work.

Key Benefits:

• Cost saving: Complete system, no additional storage tank, no connection pipe installation cost.
• Indoor space saving: Screw compressor, refrigerant dryer and air receiver combination design for convenience the 1 station installation. Indoor space saving, compact compressed air system
• Reliability: Equipped with high-efficiency air-cooled permanent magnet variable frequency motor, it can operate reliably under high temperature conditions.
