AQUASYSTEM VERTICAL PRESSURE TANKS WITH REPLACEABLE MEMBRANE 10 BAR – SERIES VA 5-35

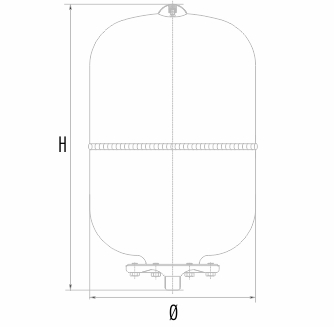

MODEL	H HEIGHT	⌀ DIAMETER	MAXIMUM WORKING PRESSURE	STANDARD PRECHARGE PRESSURE	CONNECTION
	(mm)	(mm)	(bar)	(bar)	(inches)
VA5	300	160	10	1.5	3/4”
VA8	316	200	10	1.5	3/4”
VA12	295	280	10	1.5	3/4”
VA18	430	280	10	1.5	3/4”
VA24	483	280	10	1.5	1”
VA35	440	365	10	1.5	1”
