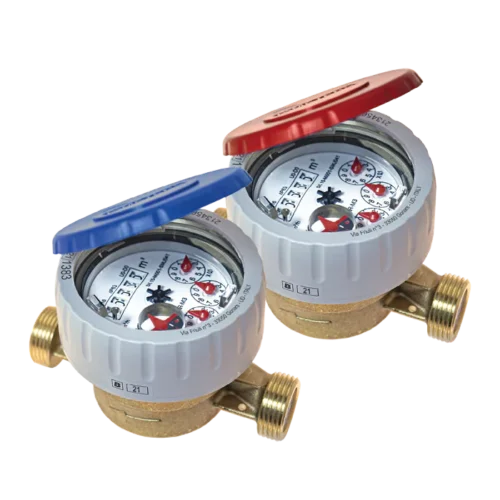

B-meters CPR-M3-I Single jet, wet dial, direct reading with an anti-fraud ring
Direct reading with a single jet, wet dial, and a lid that rotates 360 degrees and has an anti-fraud ring.
Produced in cold and hot water versions with sizes DN15 and DN20 mm (1/2′′- 3/4′′).
Using inductive pre-equipment, data transmission modules for M-BUS wired and wireless, non-magnetic pulse output, and LoRa can be installed.
Description
Reviews (0)
| Size | DN
(inch) |
15 (1/2″) | 20 (3/4″) | ||
| Overload flow rate | Q4 | m³/h | 3.12 | 5 | |
| Permanent flow rate | Q3 | m³/h | 2,5 | 4 | |
| R=100 VH ↑→ | Transitional flow rate | Q2 | L/h | 40 | 64 |
| Min flow rate | Q1 | L/h | 25 | 40 | |
| R=160 H ↑ | Transitional flow rate | Q2 | L/h | 25 | 40 |
| Min flow rate | Q1 | L/h | 15,63 | 25 | |
| Min reading | L | 0,05 | |||
| Max reading | m³ | 99.999 | |||
| Max admissible pressure MAP | bar | 16 | |||
