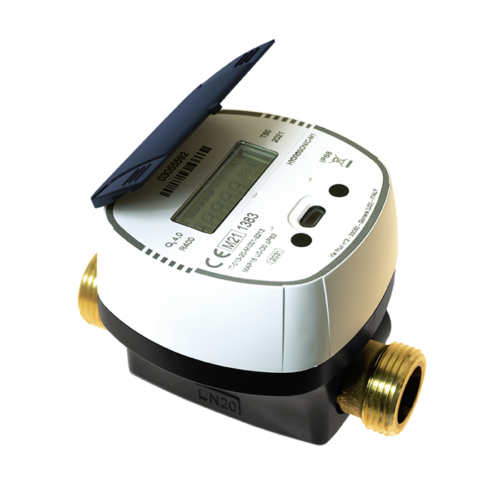

B-meters Hydrosonic-M1 Ultrasonic smart meter
Smart ultrasonic meter intended for industrial, residential, and public uses to measure cold water usage.
High accuracy, mounting in any installation position, up to R500 (Q3/Q1).
Wireless integrated transmission modules for M-BUS or LoRa.
Description
Reviews (0)
| Size | DN
(in) |
15
(1/2″) |
20
(3/4”) |
25
(1”) |
32
(1″1/4”) |
40
(1″1/2”) |
||
| Overload flow rate | Q4 | m3/h | 3,125 | 5 | 7,875 | 12,5 | 20 | |
| Permanent flow rate | Q3 | m3/h | 2,5 | 4 | 6,3 | 10 | 16 | |
| R=250 | Transitional flow rate | Q2 | L/h | 16 | 25,6 | 40,3 | 64 | 102,4 |
| Min flow rate | Q1 | L/h | 10 | 16 | 25,2 | 40 | 64 | |
| R=400* | Transitional flow rate | Q2 | L/h | 10 | 16 | 25,2 | 40 | 64 |
| Min flow rate | Q1 | L/h | 6,25 | 10 | 15,75 | 25 | 40 | |
| R=500* | Transitional flow rate | Q2 | L/h | 8 | 12,8 | 20,16 | 32 | 51,2 |
| Min flow rate | Q1 | L/h | 5 | 8 | 12,6 | 20 | 32 | |
| Starting flow | L/h | 2 | 3 | 5 | 9 | 17 | ||
| Max reading | m3 | 99.999 | ||||||
| Max admissible pressure | bar | 16 | ||||||
