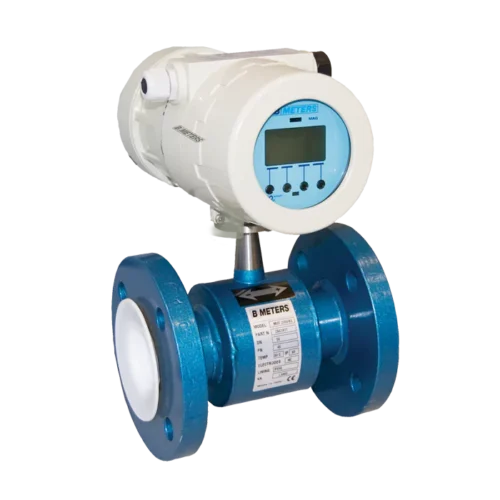

B-meters MAG-C Electromagnetic flow meter
Magnetic flowmeter used to measure the flow and volume of liquids with electrical conductivity.
Maximum measurement precision, no maintenance requirements, consistent operation over time, and flexibility in installation are all made possible by the absence of internal moving parts in the meter.
The interior lining of the passage tube, either PTFE or EBONITE, permits the management of a wide variety of liquids, including chemically hostile liquids, and the precision of the measurement is not conditioned by the presence of debris and deposits in the measured fluid. GSM/GPRS interface is offered for remote reading.
Available in a different version (MAG-S version) with a cable-connected converter.
Description
Reviews (0)
| DN15 – DN2000 | |
| Available pressure | PN10, PN16, PN25, PN40 |
| Available flanges | UNI EN 1092/1 ANSI150 ANSI300 DIN2501 BS45404 AWWA |
| IP protection | IP68 |
| Max reading error | ±0,5% (battery version) |
| Max fluid speed | 10 m/s |
| electrical conductivity | ≥ 20 μS/cm (battey version) |
| Available linings | PTFE EBANITE |
| Max fluid temperature | MAG-C -40°C /+80°C
MAG-S PTFE -40°C /+130°C EBANITE -40°C/+80°C |
| Pipe material |
Stainless steel AISI 304 |
| Flanges material |
Carbon steel |
| Electrodes material | HASTELLOY C |
| n° electrodes | 3 (DN50), 4 (≥DN50) |
| Available power supply | 90 ÷ 264 VAC o 24 VDC |
| Interchangeable battery life 3 ÷ 6 years* | |
| Display | LCD graphic 128 x 64 pixels retrofit |
| Out signals (powered version) | 4-20mA, pulse, frequency,
MODBUS RTU RS485 (optional: Hart protocol) |
| Out signals (battery version) | Pulses |
| External comunication interface |
IrDA for PC connection, MODBUS on RS485, (GSM/ GPRS) |
| According to standards | 89/336/EEC EN61326-1:2006 2006/95/EC EN ISO 6817 |
