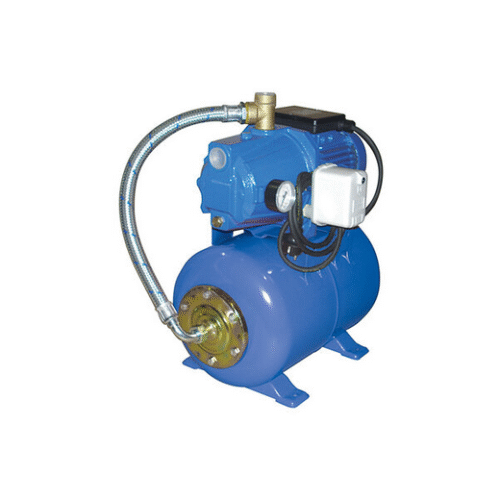

Ebara 1GP Domestic

Autoclave units with a single-phase cast-iron self-priming electric pump, available in 3 versions, are used for domestic pressurisation, small-scale garden irrigation.

Features

  • Versatility
  • Compact dimensions
1200+ products
1200+ products
Categories:,
Description
Reviews (0)

Autoclave units with a single-phase cast iron self-priming electric pump, which stand out for their compact size and high versatility thanks to the three versions available:

• 1GP H, single self-priming pump unit with a 24-litre horizontal membrane autoclave;
• 1GP P, self-priming pump arranged for the application of membrane autoclave;
• 1GP Presscomfort, self-priming pump equipped with Presscomfort automatic control device.

For further technical information see the Databook

• Domestic pressurisation, small-scale garden irrigation
• Washing of vehicles
• Handling of clean water in general

Technical Features

Technical data

Max. working pressure

6 bar for AGA 0.60-0.75-1.00
10 bar for the rest of the range
Max. temperature of the liquid

45°C
MEI

> 0.4
Poles

2
Insulation class

F
Protection degree

IP44
Voltage

Single phase 1 ~ 230V ± 10%

Materials

Pump body
Cast iron
Impeller
PPE+PS with glass fibres for AGA 0.60-0.75-1.00,
brass for the rest of the range
Shaft
AISI 304 stainless steel (EN.14301)
Mechanical seal
Ceramic/Carbon/NBR (standard)
Motor support
Aluminium
