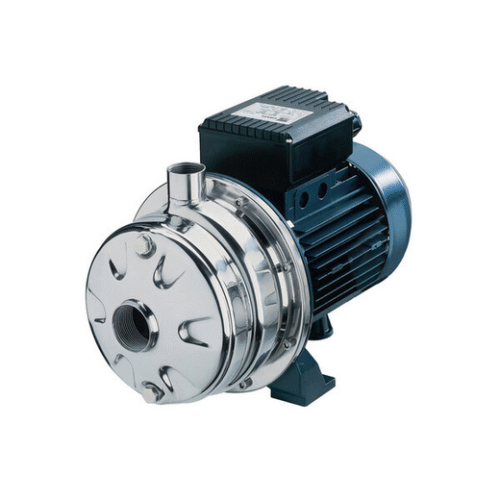

Ebara 2CDX(L)
Twin impeller centrifugal pump in AISI 304 and AISI 316 stainless steel, with radial impeller and components made by the hydroforming process that provides high resistance to corrosion, high efficiency with over 80% performance and low losses. The versatility of these electric pumps is due to the different types of mechanical seals that can be applied.
Features
Description
Reviews (0)
Technical Features
Technical data
|
Flow rate
|
from 1.2 to 12.6 m³/h
|
|
Total head
|
From 71.5 to 27 m
|
|
Max. working pressure
|
8 bar
|
|
Max. temperature of the liquid
|
-5°C ÷ +60°C for 2CDX(L) std and E versions
-5°C ÷ +110°C for H, HS, HW, HSW versions |
|
Poles
|
2
|
|
Insulation class
|
F
|
|
Protection degree
|
IP55
|
|
Voltage
|
Single-phase 1~230V ±10%
Three-phase 3~230/400V ±10% |
Materials
|
Pump body
|
Stainless steel AISI 304 (EN 1.4301) (2CDX)
Stainless steel AISI 316 (EN 1.4401) (2CDXL) |
|
Impeller
|
Stainless steel AISI 304 (EN 1.4301) (2CDX)
Stainless steel AISI 316 (EN 1.4401) (2CDXL) |
|
Shaft
|
Stainless steel AISI 304 (EN 1.4301) (2CDX)
Stainless steel AISI 316 (EN 1.4401) (2CDXL) |
|
Mechanical seal
|
Standard = Ceramic/Carbon/NBR
H = Graphite/Ceramic/FPM HS = Silicon Carbide/Silicon Carbide/FPM HW = Tungsten Carbide/Tungsten Carbide/FPM HSW = Silicon Carbide/Tungsten Carbide/FPM E = Graphite/Ceramic/EPDM |
|
Motor support
|
Aluminium (up to and including 1.5 kW), cast iron (2.2 kW and above)
|
