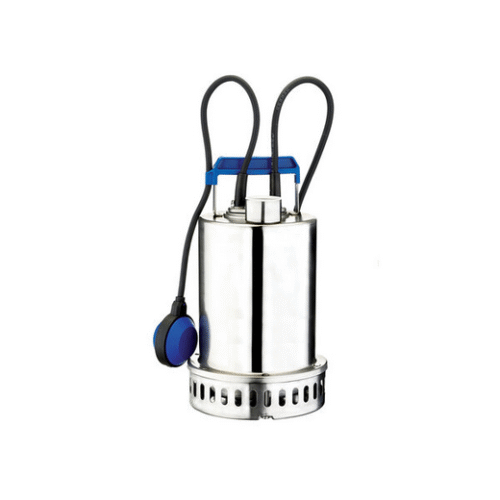

Ebara BEST 2-5
Submersible pump made entirely of AISI 304 stainless steel, with double mechanical seal in oil chamber, also available with float switch. Possibility of fixed or mobile installation and suitable for domestic applications and large industrial drainage installations.
Features
Description
Reviews (0)
Submersible pump entirely in AISI 304 stainless steel, with double mechanical seal in oil chamber.
Practical and easy to use, BEST 2-5 electric pumps are also available with float, thus increasing their versatility of use.
For further technical information see the Databook
• Handling of seepage water
• Emptying of basements, garages, cellars
• Drainage of small and medium-sized construction sites
Technical Features
Technical data
|
Flow rate
|
from 1.2 to 21.6 m³/h
|
|
Total head
|
From 2.9 to 18.4 m
|
|
Max. temperature of the liquid
|
+35°C
|
|
Poles
|
2
|
|
Max. solids passage
|
10 mm
|
|
Insulation class
|
F
|
|
Protection degree
|
IP68
|
|
Voltage
|
Single-phase 1~230V ±10%
Three-phase 3~400 ±10% |
|
Max. immersion
|
7 m with 10 m cable
|
Materials
|
Pump body
|
Stainless steel AISI 304 (EN 1.4301)
|
|
Impeller
|
Stainless steel AISI 304 (EN 1.4301)
|
|
Shaft
|
Stainless steel AISI 303 (EN 1.4305) (part in contact with liquid)
|
|
Mechanical seal
|
upper part in Carbon/Ceramic/NBR (motor side)
lower part in Silicon Carbide/NBR (pump side) |
