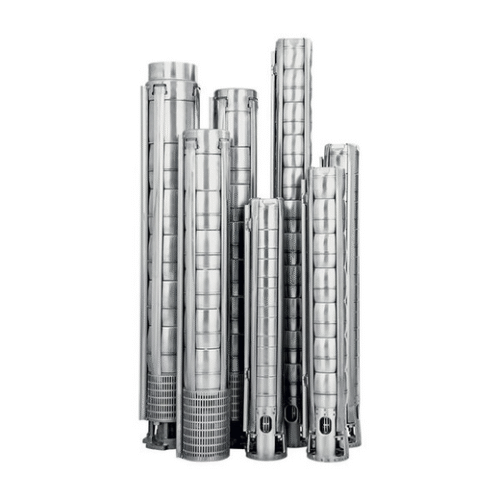

Ebara BSP SS(L)
6″, 7″, 8″ and 10″ submersible pump for wells, made entirely of AISI 304 (AISI 316 upon request) and extremely corrosion-resistant. Suitable for water supply.
Features
Description
Reviews (0)
6”, 7″, 8” and 10″ submersible pumps for wells, made entirely of AISI 304 (AISI 316 upon request) and extremely corrosion-resistant. Suitable for water supply.
6”, 7″, 8” and 10″ submersible pumps, made entirely of AISI 304 (AISI 316 version available upon request). Their full stainless steel structure makes them extremely resistant to corrosion.
The BSP SS range has an original design guaranteeing greater efficiency, better results and reduced consumption, lengthening the lifespan of the device. The configuration between the hydraulic part and the motor is highly flexible, ensuring the maximum adaptability to meet every type of need.
The 6″ version stands out for its innovative “tandem pump” solution that offers a higher pressure level without increasing the diameter, so it’s ideal in restricted spaces.
• Water supply systems for civil and industrial use
• Pressure boosting systems
• Community waterworks
Technical data
|
Flow rate
|
Up to 290 m³/h
|
|
Total head
|
Up to 700 m
|
|
Max. temperature of the liquid
|
0°C ÷ 50°C
|
|
Poles
|
2
|
|
Insulation class
|
F
|
|
Protection degree
|
IP68
|
|
Voltage
|
Three-phase 3~380-415V -10%+6%
|
|
Max. immersion
|
300 m
|
|
Max. sand content
|
50 g/m³
|
Materials
|
Impeller
|
Stainless steel AISI 304L
|
|
Shaft
|
Stainless steel AISI 431
|
|
Outer casing
|
Stainless steel AISI 304L
|
|
Discharge casing
|
Stainless steel AISI 304L
|
|
Motor connection
|
Stainless steel AISI 304L
|
