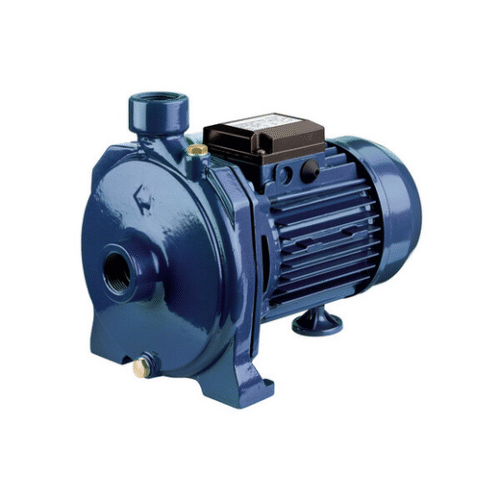

Ebara CMA-B-C
Single-impeller centrifugal pump with cast iron body, available in different models: CMA – CMB – CMC – CMD. Depending on the model, the impellers, shafts and motor mount can be made of different materials (see technical data table).
Features
Description
Reviews (0)
Single-impeller centrifugal pump with cast iron body, available in different models: CMA – CMB – CMC – CMD.
Depending on the model, the impellers, shafts and motor mount can be made of different materials (see technical data table). Their compact size makes CMA-B-C centrifugal electric pumps easy to install even when spaces are narrow or difficult to reach.
Their sturdy and reliable structure allows for high performance in all water handling applications.
For further technical information see the Databook
• Pressurisation of domestic installations
• Small-scale irrigation
• Washing systems and vehicle washing
• Handling of non-aggressive liquids for civil and industrial use
Technical Features
Technical data
|
Flow rate
|
from 1.2 to 60.5 m³/h
|
|
Total head
|
From 5.2 to 57.0 m
|
|
Max. working pressure
|
6 bar for CMA 0.50-0.75-1.00
CMB 0.75-1.00-1.50-2.00-3.00 CMC, CMD 8 bar for CMA 1.50-2.00-3.00 CMB 4.00-5.50 |
|
Max. temperature of the liquid
|
+40°C for CMA 0.50-0.75-1.00
+90°C for the rest of the range |
|
MEI
|
> 0.4
|
|
Poles
|
2
|
|
Insulation class
|
F
|
|
Protection degree
|
IP44
|
|
Voltage
|
Single-phase 1~230V ±10%
Three-phase 3~230/400V ±10% |
Materials
|
Pump body
|
Cast iron
|
|
Impeller
|
in PPE+PS with glass fibres for CMA 0.50 – 0.75 – 1.00
in brass for CMA 1.50 – 2.00 – 3.00 CMB 2.00 – 3.00 – 4.00 – 5.50 in cast iron for CMB 0.75 – 1.00 – 1.50, CMC, CMD |
|
Shaft
|
in AISI 416 (EN 1.4005) (integral) for CMA 0.50
in AISI 303 (EN 1.4305) (part in contact with liquid) for CMA 0.75-1.00-1.50-2.00-3.00 CMB 0.75-1.00-1.50-2.00-3.00 CMC 0.75-1.00, CMD 1.50-2.00-3.00 in AISI 304 (EN 1.4301) (part in contact with liquid) for CMB 4.00-5.50 |
|
Mechanical seal
|
Ceramic/Carbon/NBR (standard)
|
|
Motor support
|
in aluminium for CMA 0.50-0.75-1.00
CMB 0.75-1.00 CMC 0.75-1.00 in cast iron for the rest of the range |
