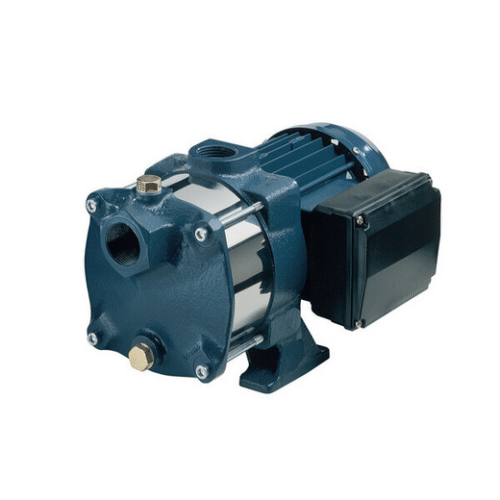

Multistage horizontal cast iron centrifugal pump with technopolymer impeller. Its compact, lightweight, silent and sturdy structure makes it a versatile product for many domestic applications.
For further technical information see the Databook
• Domestic pressurisation
• Pressure boosting in general
• Garden irrigation systems
• Vehicle washing
• Handling of clean water
Technical Features
Technical data
|
Flow rate
|
Up to 7.2 m³/h
|
|
Total head
|
Up to 79 m
|
|
Max. working pressure
|
10 bar
|
|
Max. temperature of the liquid
|
+40°C
|
|
Poles
|
2
|
|
Insulation class
|
F
|
|
Protection degree
|
IP44
|
|
Voltage
|
Single-phase 1~230V ±10%
Three-phase 3~230/400V ±10% |
Materials
|
Pump body
|
Cast iron
|
|
Impeller
|
PPE+PS with glass fibres
|
|
Shaft
|
Stainless steel AISI 416 (EN 1.4005)
|
|
Mechanical seal
|
Ceramic/Carbon/NBR (standard)
|
|
Motor support
|
Cast iron
|
|
Stages
|
PPE+PS with glass fibres/PTFE
|
