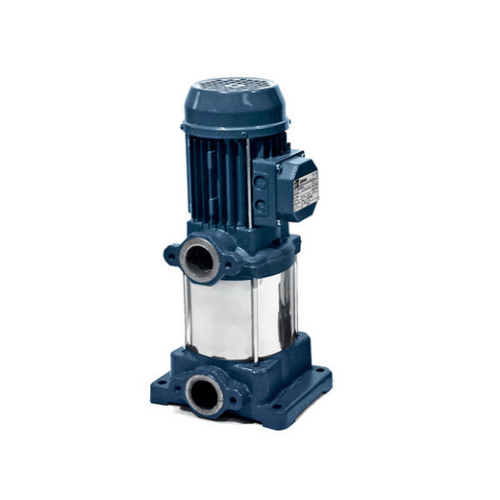

Ebara CVM
Cast iron vertical multistage centrifugal pump, with glass fibre reinforced technopolymer stages and cast iron base. Equipped as standard with counterflanges, it is suitable for pressure increases in general.
Features
Description
Reviews (0)
Cast iron vertical multistage centrifugal pump, with glass fibre reinforced technopolymer stages and cast iron base. Counterflanges are fitted as standard.
Quiet and easy to maintain, it is suitable for residential use.
For further technical information see the Databook
• Pressure boosting
• Pressure boosting systems
• Irrigation
• Washing systems
• Clean water handling
Technical Features
Technical data
|
Flow rate
|
Up to 7.2 m³/h
|
|
Total head
|
Up to 6.4 m
|
|
Max. working pressure
|
11 bar
|
|
Max. temperature of the liquid
|
+40°C
|
|
MEI
|
> 0.4
|
|
Poles
|
2
|
|
Insulation class
|
F
|
|
Protection degree
|
IP44
|
|
Voltage
|
Single-phase 1~230V ±10%
Three-phase 3~230/400V ±10% |
Materials
|
Pump body
|
Cast iron
|
|
Impeller
|
PPE+PS with glass fibres
|
|
Shaft
|
Stainless steel AISI 416 (EN 1.4005)
|
|
Mechanical seal
|
Ceramic/Carbon/NBR (standard)
|
|
Motor support
|
Cast iron
|
