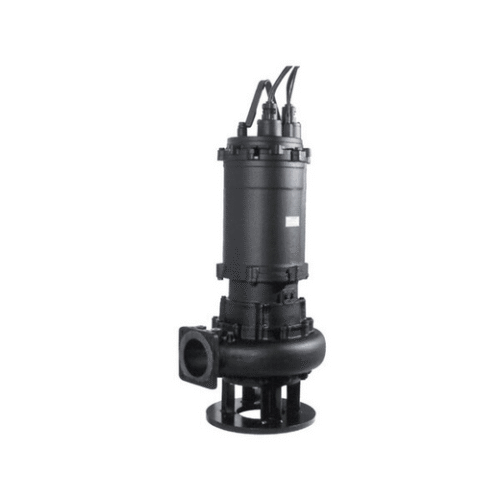

Ebara DL W/C
Cast iron submersible pump with open single-channel impeller with cutting action (cutter) and semi-open anti-clogging impeller, which prevents clogging of the pump itself. Suitable for pumping wastewater with solid and/or filamentary bodies in suspension.
Features
Description
Reviews (0)
Cast iron submersible pump with single-channel open impeller with cutter and semi-open anti-clogging impeller, designed to prevent the pump from clogging, to offer maximum efficiency.
DL W/C electric pumps offer a wide range of powers up to 45 kW, different discharge diameters and can be used in fixed and mobile installations.
For further technical information see the Databook
• Soiled liquids with solid and fibrous bodies
Technical Features
Technical data
|
Flow rate
|
Up to 150 m³/h
|
|
Total head
|
Up to 20.2 m
|
|
Max. temperature of the liquid
|
+40°C
|
|
Poles
|
4
|
|
Max. solids passage
|
35 mm (65DLW/C)
50 mm (80DLW/C) 60 mm (100DLB W/C) |
|
Insulation class
|
F
|
|
Protection degree
|
IP68
|
|
Voltage
|
Three-phase 3~380-415±10% (1.5÷7.5kW)
|
|
Max. immersion
|
7 m with 10 m cable
|
|
Max. length of fibres
|
195 mm (65DLW/C)
240 mm (80DLW/C) 300 mm (100DLW/C) |
Materials
|
Pump body
|
Cast iron
|
|
Impeller
|
Cast iron
|
|
Shaft
|
Stainless steel 403 (EN 1.4006)
|
|
Mechanical seal
|
Impeller side: Silicon carbide/Silicon carbide/NBR
Motor side: Carbon/Ceramic/NBR |
