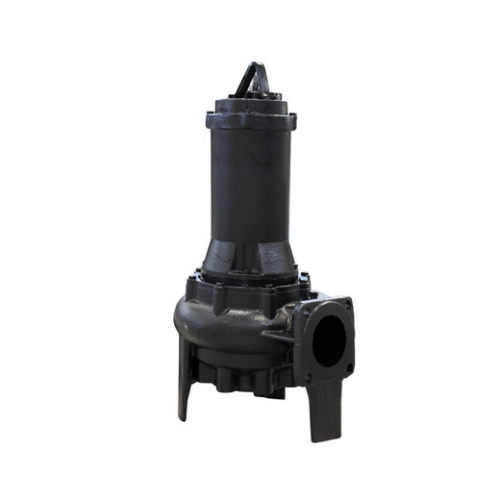

Ebara DMLV – DMLVF

Cast iron submersible pump with vortex impeller that facilitates the passage of solids and prevents clogging, usable in fixed and mobile installations. Suitable for pumping wastewater with suspended solids.

Features

  • Possibility to use in fixed and mobile installations
  • Vortex impeller
1200+ products
1200+ products
Categories:,
Description
Reviews (0)

Cast iron submersible pump with vortex impeller that facilitates the passage of solids and prevents clogging, usable in fixed and mobile installations.
DMLV – DMLVF electric pumps are advanced technical solutions that provide high-level performance, especially in heavy-duty applications.
For further technical information see the Databook

• Soiled liquids
• Civil and industrial wastewater or liquids containing solid and/or filamentary substances in suspension

Technical Features

Technical data

Flow rate

Up to 168 m³/h (DMLV)
Up to 200 m³/h (DMLVF)
Total head

Up to 41.3 m (DML)
Up to 29.4 m (DMLVF)
Max. temperature of the liquid

+40°C
Poles

2, 4, 6
Max. solids passage

80÷100 mm (DMLV)
30÷80 mm (DMLVF)
Insulation class

F (DMLV)
H (DMLVF)
Protection degree

IP68
Voltage

Three-phase 3~380-415V -10 +6%
(DMLV 2.2 kW) – DOL
Three-phase 3~380-415V ±10%
(DMLV 3.7÷22 kW) – Y/Δ
Single-phase 1~230V ±10% (DMLVF)
Three-phase 3~400/690V ±10% (DMLVF)
Max. immersion

7 m with 10 m cable
Max. length of fibres

400 mm (80DMLV)
500 mm (100DMLV)

Materials

Pump body
Cast iron
Impeller
Cast iron
Shaft
Stainless steel 403 (EN 1.4006) (DMLV)
Stainless steel 420B (EN 1.4028) (DMLVF)
Mechanical seal
Impeller side: Silicon carbide/Silicon carbide/NBR
Motor side: Carbon/Ceramic/NBR
