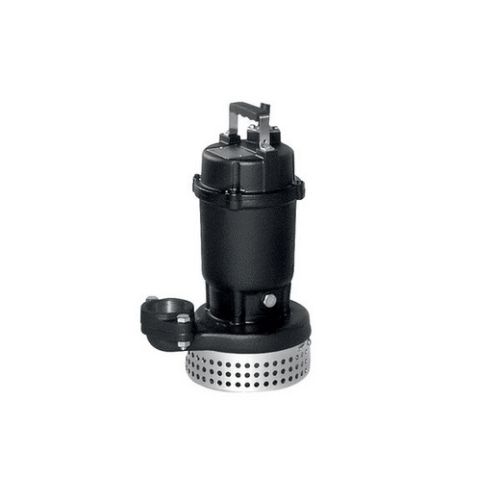

Ebara DS – DSF
Submersible pump with semi-open impeller with cast iron shim and anti-clogging filters, supplied as standard with the thermal protector and double mechanical seal with oil chamber. Suitable for pumping clear water and rainwater.
Features
Description
Reviews (0)
Submersible pump with semi-open impeller with cast iron shim and anti-clogging filters that provide high efficiency.
The thermo protector supplied as standard in the range and the double mechanical seal with oil chamber prevent damage from dry running of the pump.
For further technical information see the Databook
• Drainage
• Domestic irrigation (e.g. gardens)
• Pumping of rainwater and clear water
Technical Features
Technical data
|
Flow rate
|
Up to 84 m³/h
|
|
Total head
|
Up to 43 m
|
|
Max. temperature of the liquid
|
+40°C
|
|
Poles
|
2
|
|
Max. solids passage
|
5 mm (50DS)
6 mm (65DS) (40DSF 1.5, 1.9 kW) 7 mm (80DS) (40DSF 6 kW) 8 mm (100DS) |
|
Insulation class
|
F for DS
H for DSF |
|
Protection degree
|
IP68
|
|
Voltage
|
Three-phase 3~380-415±10% (DS)
Single-phase 1~230±10% (DSF) Three-phase 3~400/690±10% (DSF) |
|
Max. immersion
|
up to 1.5kW:
3 m with 6 m cable over 1.5kW: 7 m with 10 m cable |
|
Max. length of fibres
|
50 mm
|
Materials
|
Pump body
|
Cast iron
|
|
Impeller
|
Cast iron
|
|
Shaft
|
Stainless steel 403 (EN 1.4006) (DS)
Stainless steel 420B (EN 1.4028) (DSF) |
|
Mechanical seal
|
Impeller side: Silicon Carbide/NBR
Motor side: Carbon/Ceramic/NBR (6 kW and above for DSF) |
