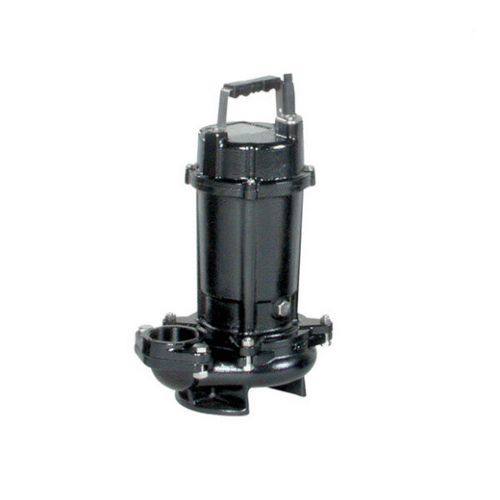

Submersible pump with cast iron anti-clogging semi-vortex impeller capable of pumping of foreign bodies up to 70% of the discharge outlet’s diameter while retaining ease of maintenance.
The DVS electric pump is only available in a three-phase version and can be used in fixed and mobile installations.
For further technical information see the Databook
• Pumping of wastewater with solid or fibrous materials
• Pumping of industrial wastewater
• Drainage
Technical Features
Technical data
|
Flow rate
|
Up to 60 m³/h
|
|
Total head
|
Up to 23 m
|
|
Max. temperature of the liquid
|
+40°C
|
|
Poles
|
2
|
|
Max. solids passage
|
21 mm (50DVS)
33 mm (65DVS and 80DVS 1.5 kW) 41 mm (65DVS and 80DVS 2.2-3.7 kW) |
|
Insulation class
|
F
|
|
Protection degree
|
IP68
|
|
Voltage
|
Three-phase 3~380-415±10%
|
|
Max. immersion
|
up to 1.5kW:
3 m with 6 m cable over 1.5kW: 7 m with 10 m cable |
|
Max. length of fibres
|
100 mm (50DVS)
200 mm (65DVS and 80DVS 1.5 kW) 245 mm (65DVS and 80DVS 2.2-3.7 kW) |
Materials
|
Pump body
|
Cast iron
|
|
Impeller
|
Cast iron
|
|
Shaft
|
Stainless steel 403 (EN 1.4006)
|
|
Mechanical seal
|
Impeller side: Silicon carbide/Silicon carbide/NBR
Motor side: Carbon/Ceramic/NBR |
