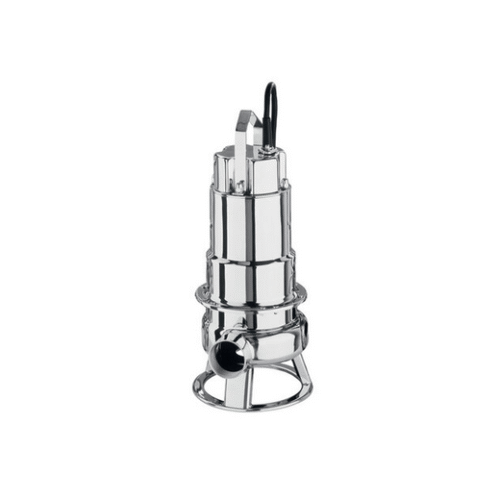

Ebara DW – DW VOX
AISI 304 stainless steel submersible pump and single-channel impeller (DW) or vortex impeller (DW VOX) for fixed and mobile installations. Available with two versions for piping connection. Suitable for domestic applications and large industrial wastewater lifting installations.
Features
Description
Reviews (0)
AISI 304 stainless steel submersible pump and single-channel impeller (DW) or vortex impeller (DW VOX) for fixed and mobile installations. The DW – DW VOX electric pump has two versions for connection to pipes:
• Threaded for DW – DW VOX
• Flanged for DWF – DW VOXF
For further technical information see the Databook
• Evacuation of civil and industrial wastewater
• Drainage of wells or excavations
• Drainage of underwater areas
• General Handling of liquids, including those with solid and/or filamentary substances in suspension
• Emptying of seepage water
• Handling of dirty wastewater (sanitary services)
• Emptying of cesspits
Technical Features
Technical data
|
Flow rate
|
Up to 54 m³/h for DW
Up to 48 m³/h for DW VOX |
|
Total head
|
Up to 20 m for DW
Up to 15.7 m for DW VOX |
|
Max. temperature of the liquid
|
+40°C
|
|
Poles
|
2
|
|
Max. solids passage
|
50 mm
|
|
Insulation class
|
F
|
|
Protection degree
|
IPX8
|
|
Voltage
|
Single-phase 1~230V ± 10%
Three-phase 3~400V ±10% |
|
Max. immersion
|
7 m with 10 m cable
|
Materials
|
Pump body
|
Stainless steel AISI 304 (EN 1.4301)
|
|
Impeller
|
Stainless steel AISI 304 (EN 1.4301)
|
|
Shaft
|
Stainless steel AISI 303 (EN 1.4305) (part in contact with liquid)
|
|
Mechanical seal
|
upper part in Carbon/Ceramic/NBR (motor side)
lower part in Silicon Carbide/NBR (pump side) |
