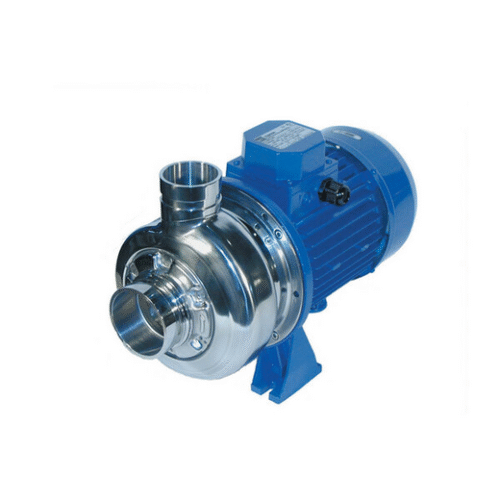

Ebara DWC
Centrifugal pump fitted with a closed radial flow impeller in AISI 304 stainless steel. It is equipped with an insulating shell as standard, which prevents condensation inside the system. It is available with special seals for heavier duty use and higher liquid temperature limits. The choice of connections, Victaulic (DWC-V) and threaded (DWC-N), facilitates installation.
Features
Description
Reviews (0)
Centrifugal pump fitted with a closed radial flow impeller in AISI 304 stainless steel.
It is sturdily built, made using the exclusive hydroforming process, and is equipped with increased discharge due to the absence of additional fittings.
It is equipped with an insulating shell as standard, which prevents condensation inside the system, and the standard mechanical seal is in Ceramic/Carbon/EPDM. The DWC centrifugal pump is available with special seals for heavier duty and higher liquid temperature limits.
The choice of connections, Victaulic (DWC-V) and threaded (DWC-N), facilitates installation.
For further technical information see the Databook
• Cooling, air conditioning and heating systems
• Chillers
• Washing systems
• Civil and industrial water supply
Technical Features
Technical data
|
Flow rate
|
from 6 to 45 m³/h
|
|
Total head
|
From 6.2 to 25 m
|
|
Max. working pressure
|
8 bar
|
|
Max. temperature of the liquid
|
15°C ÷ +90°C for std version
-15°C ÷ +110°C for H, HS, HW, HSW versions |
|
Poles
|
2
|
|
Insulation class
|
F
|
|
Protection degree
|
IP55
|
|
Voltage
|
Three-phase 3~230/400V ±10%
|
Materials
|
Pump body
|
Stainless steel AISI 304 (EN 1.4301)
|
|
Impeller
|
Stainless steel AISI 304 (EN 1.4301)
|
|
Shaft
|
Stainless steel AISI 304 (EN 1.4301) (part in
contact with the liquid) |
|
Mechanical seal
|
Standard = Ceramic/Carbon/EPDM
H = Graphite/Ceramic/FPM HS = Silicon Carbide/Silicon Carbide/FPM HW = Tungsten Carbide/Tungsten Carbide/FPM HSW = Silicon Carbide/Tungsten Carbide/FPM |
|
Motor support
|
Aluminium
|
