Ebara EVMS-K

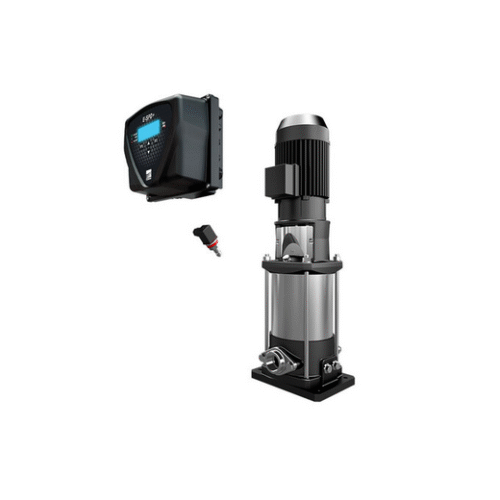

Vertical multi-stage surface pump in AISI 304 steel (EVMS), in AISI 316L (EVMSL) or in cast iron (EVMSG) complete with integrated E-SPD+ (plus) frequency converter.
Features
Description
Reviews (0)
Vertical multi-stage surface pump in AISI 304 steel (EVMS), in AISI 316L (EVMSL) or in cast iron (EVMSG) complete with integrated E-SPD+ (plus) frequency converter.
On the one hand the highly innovative technology of the EBARA EVMS with patented Shurricane® impeller and on the other hand E-SPD+ (plus), the air cooled inverter, capable of varying the speed continuously and operating on any working point, consequently optimising performances and consumption according to the system’s requirements
All EBARA pumps from the EVMS-K series are rigorously tested, guaranteeing full functionality of the system and facilitating the start-up phase.
For further technical information see the Databook in the Download section
- Water supply for distribution networks in the building services sector
- Water supply for industry in general
- Irrigation of gardens, parks and sports fields
- Water treatment
- Vehicle washing
Technical Features
Technical data
|
Flow rate
|
1, 3, 5, 10, 15, 20 m³/h (nominal flow rate)
|
|
Total head
|
243 m
|
|
Max. working pressure
|
1.6, 2.5, MPa (16, 25 bar)
|
|
Max. temperature of the liquid
|
from -30ºC to 100ºC
|
|
MEI
|
> 0.7
|
|
Poles
|
2
|
|
Insulation class
|
F
|
|
Protection degree
|
IP55
|
|
Voltage
|
Single-phase 230V±10% for MT version up to 2,2kW
Three-phase 400V±10% for TT version up to 4kW |
Materials
|
Impeller
|
Stainless steel AISI 304 (EN 1.4301)
Stainless steel AISI 316L (EN 1.4404) for EVMSL |
|
Shaft
|
AISI 304 (EN 1.4301) or AISI 329A (EN 1.4462)
(depending on model) AISI 316L (EN 1.4404) or AISI 329A (EN 1.4462) for EVMSL (depending on model) |
|
Mechanical seal
|
Silicon Carbide/Carbon/EPDM or FPM
Silicon Carbide Graphite/Silicon Carbide/EPDM or FPM |
|
Motor support
|
Cast iron ENGJL-200 EN1561
|
|
Outer casing
|
AISI 304 (EN 1.4301)
AISI 316L (EN 1.4404) for EVMSL |
|
Tie rod
|
Stainless steel AISI 431 (EN 1.4057)
|
|
Base
|
AISI 304 (EN 1.4301) and ASTM CF8 (EN 1.4308) for EVMS
Cast iron for EVMSG AISI 316L (EN 1.4404) and ASTM CF8 (EN 1.4308) for EVMSL |
