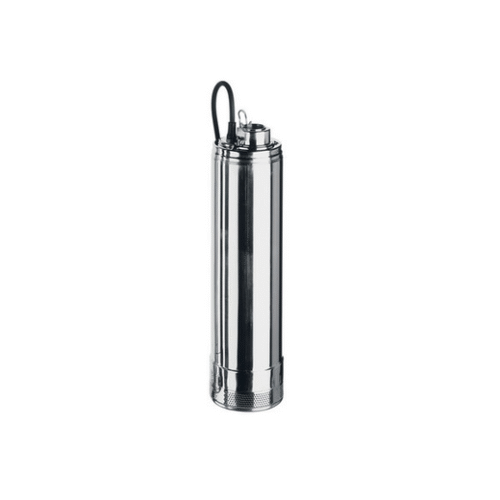

Ebara IDROGO
5″ submerged pump with stainless steel outer casing and glass fibre reinforced PPE impellers, built with double mechanical seal in oil chamber. Equipped with 20 metres of cable, it is easy to install and suitable for vertical and horizontal operations. The single-phase version with float switch (called “A” version) is also available on request.
Features
Description
Reviews (0)
5″ submerged pump with stainless steel outer casing and glass fibre reinforced PPE impellers.
The IDROGO electric pump is reliable and corrosion-resistant, also due to the technical solutions adopted in its construction, such as the double mechanical seal in the oil chamber.
This pump is easy to install because it comes with 20 metres of cable for immediate installation and is suitable for vertical and horizontal operation.
The single-phase version with float switch (called ‘A’ version) on request.
The 5 or 10-metre key float with counterweight, supplied on request, is a useful and effective accessory and allows you to control the pump’s start and stop based on the level of water present in the tank or well.
For further technical information see the Databook
• Handling of clear water from wells, cisterns and primary collection tanks
• Pressurisation of domestic systems
• Small-scale irrigation
• Vehicle washing
• Pressure boosting in general
Technical Features
Technical data
|
Flow rate
|
from 1.2 to 7.2 m³/h
|
|
Total head
|
From 10 m to 76 m
|
|
Max. working pressure
|
10 bar
|
|
Max. temperature of the liquid
|
+40°C
|
|
Poles
|
2
|
|
Insulation class
|
F
|
|
Protection degree
|
IP68
|
|
Voltage
|
Single-phase 1~230V ±10%
Three-phase 3~230/400V ±10% |
Materials
|
Impeller
|
PPE+PS with glass fibres
|
|
Shaft
|
Stainless steel 431 (EN 1.4057)
|
|
Mechanical seal
|
Carbon/Ceramic/NBR (motor side)
Silicon Carbide/Carbon/NBR (pump side) |
|
Outer casing
|
Stainless steel AISI 304 (EN 1.4301)
|
