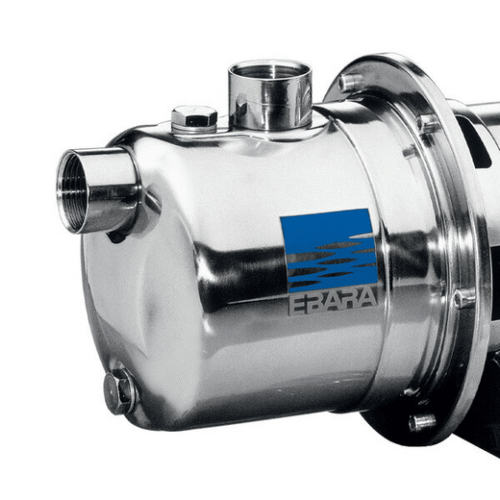

Ebara JES – JE

Self-priming centrifugal pump in AISI 304 steel with Venturi unit suitable for residential applications.

Features

  • Practical and easy to use
  • Lightweight and easily transportable
1200+ products
1200+ products
Categories:,
Description
Reviews (0)

Self-priming centrifugal pump in AISI 304 steel with a special hydraulic system including a Venturi unit (ejector and diffuser) that can suck water up to 8 metres deep.
Suitable for residential applications: gardening and irrigation.
Lightweight and easily transportable, small in size.
For further technical information see the Databook

• Domestic pressurisation
• Pressure boosting in general
• Garden irrigation systems
• Vehicle washing
• Handling of clean water

Technical Features

Technical data

Flow rate
From 0.3 to 4.5 m³/h
Total head
From 11.5 to 49 m
Max. working pressure
6 bar
Max. temperature of the liquid
45°C
Max. suction depth
8 m
Poles
2
Insulation class
F
Protection degree
IP44 (IP55 on request)
Voltage
Single-phase 1~230V ±10%
Three-phase 3~230/400V ±10%

Materials

Pump body
Stainless steel AISI 304 (EN 1.4301)
Impeller
Stainless steel AISI 304 (EN 1.4301) for JE
PPO reinforced with glass fibres for JES
Shaft
Stainless steel AISI 303 (EN 1.4305) (part in contact with liquid)
Mechanical seal
Ceramic/Carbon/NBR (standard)
Motor support
Stainless steel AISI 304 (EN 1.4301)
