Ebara Mining & Construction

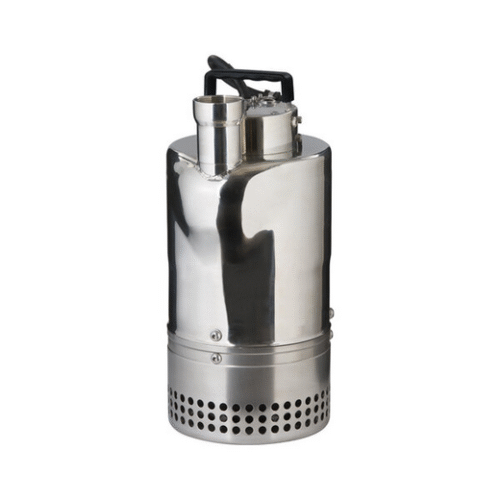

Submersible pump, with oil bath motor, for cooling and lubrication of the bearings and a double mechanical seal, oil bath (motor side) and water bath (pump side). Suitable for construction site drainage applications.
Features
Description
Reviews (0)
Technical Features
Technical data
|
Max. temperature of the liquid
|
+35°C
|
|
Max. solids passage
|
10 mm
|
|
Insulation class
|
F
|
|
Protection degree
|
IP68
|
|
Voltage
|
Single-phase 1~230V ±10%
Three-phase 3~400 ±10% |
|
Max. immersion
|
5 m with 10 m cable
|
Materials
|
Pump body
|
Stainless steel AISI 304 (EN 1.4301)
|
|
Impeller
|
Special stainless steel for 50-80DEMINY
in cast iron with special treatment for 100DEMINY |
|
Shaft
|
Stainless steel 316 (EN 1.4401)
|
|
Mechanical seal
|
Impeller side: Silicon Carbide/Ceramic
Motor side: Graphite/ceramic |
