Ebara MULTIGO
PRA peripheral pump with cast iron pump body and motor bracket, also available in the nickel-plated version (PRN 0.50 single-phase). Practical, compact and easily transportable.
Features
AISI 304 stainless steel vertical multistage centrifugal pump, equipped with an internal motor cooled by the pumped liquid that allows it to be used both on the surface and in a submerged configuration.
Features
Description
Reviews (0)

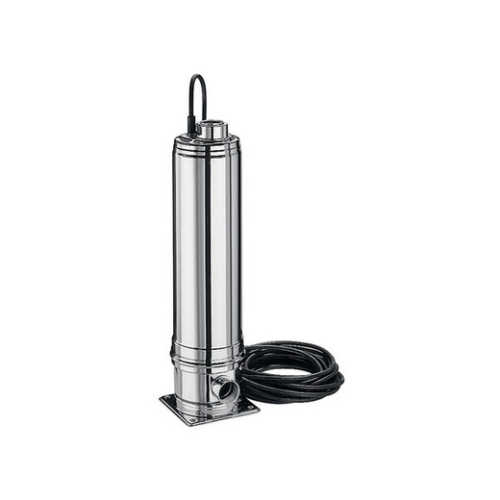

Vertical multistage centrifugal pump in AISI 304 stainless steel, equipped with a motor cooled by the pumped liquid that makes it unique in terms of versatility of use, both in surface and submerged configuration, and of silence, reducing the vibrations caused by the hydraulic part.
The MULTIGO vertical multistage centrifugal electric pump has a double mechanical seal in the oil chamber to ensure continuous lubrication and maximum reliability.
The MULTIGO is available also as in-line version.
For further technical information see the Databook
• Pressure boosting
• Pressure boosting systems
• Irrigation
• Washing systems
• Clean water harvesting
Technical Features
Technical data
|
Flow rate
|
1.2 to 7.2 m³/h
|
|
Total head
|
From 75.7 to 13.4 m
|
|
Max. working pressure
|
10 bar
|
|
Max. temperature of the liquid
|
+40°C
|
|
Max. suction depth
|
6 m with 5 m cable
|
|
MEI
|
> 0.4
|
|
Poles
|
2
|
|
Insulation class
|
F
|
|
Protection degree
|
IP68
|
|
Voltage
|
Single-phase 1~230V ±10%
Three-phase 3~230/400V ±10% |
Materials
|
Pump body
|
Stainless steel AISI 304 (EN 1.4301)
|
|
Impeller
|
PPE+PS with glass fibres
|
|
Shaft
|
Stainless steel AISI 431 (EN 1.4057)
|
|
Mechanical seal
|
Ceramic/Carbon/NBR
|
|
Motor support
|
AISI 304
|
