Ebara PRA – PRN

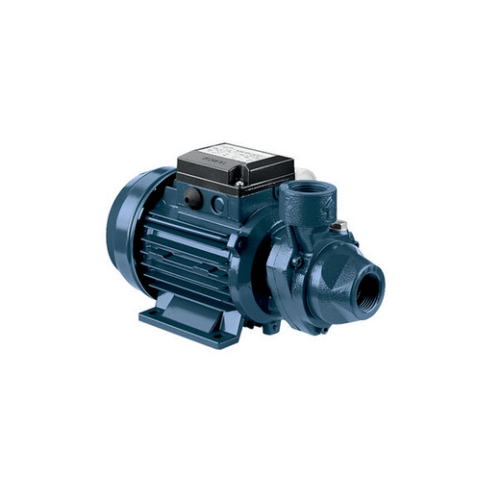

PRA peripheral pump with cast iron pump body and motor bracket, also available in the nickel-plated version (PRN 0.50 single-phase). Practical, compact and easily transportable.
Features
Description
Reviews (0)
PRA peripheral pump with cast iron body and support, also available in the nickel-plated version (PRN 0.50 single-phase).
PRA-PRN electric pumps are practical, compact and easily transportable.
For further technical information see the Databook
• Domestic use
• Boiler power supply
• Autoclave units
Technical Features
Technical data
|
Flow rate
|
from 0.3 to 4.2 m³/h
|
|
Total head
|
From 12 to 88 m
|
|
Max. working pressure
|
6 bar PRA/PRN 0.50
7.5 bar PRA 0.80 12 bar for the rest of the range |
|
Max. temperature of the liquid
|
+80°C
|
|
Poles
|
2
|
|
Insulation class
|
F
|
|
Protection degree
|
IP44
|
|
Voltage
|
Single-phase 1~230V ±10%
Three-phase 3~230/400V ±10% |
Materials
|
Pump body
|
Cast iron
Nickel-plated cast iron for PRN |
|
Impeller
|
Brass
|
|
Shaft
|
AVZ for PRA 0.50
AISI 303 (EN 1.4305) for the rest of the range |
|
Mechanical seal
|
Carbon/Ceramic/NBR (standard)
|
|
Motor support
|
Cast iron
|
