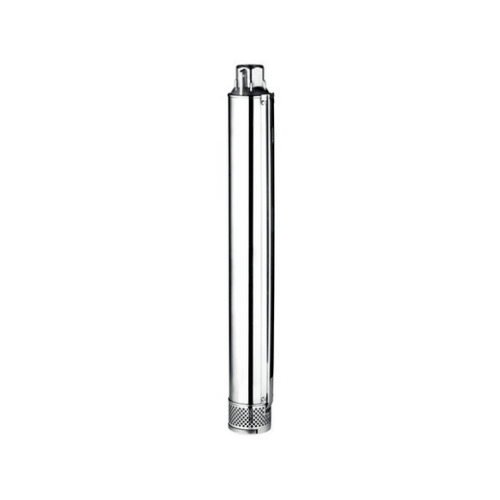

Ebara SB3
3” submerged well pump with outer casing in AISI 304 stainless steel and impellers in glass fibre reinforced PPO. Suitable for handling water in general and also for horizontal operation.
Features
Description
Reviews (0)
3” submerged well pump with outer casing in AISI 304 stainless steel and impellers in glass fibre reinforced PPO.
It can be coupled with motors in water bath or oil bath.
It is quiet, especially sturdy and efficient, but above all versatile, also suitable for horizontal operation.
For further technical information see the Databook
• Handling of clear water in wells
• Pressurisation of clean water for agricultural, domestic or industrial use
• Irrigation
• Handling of water in general
Technical Features
Technical data
|
Flow rate
|
from 0.6 to 2.7 m³/h
|
|
Total head
|
From 9.8m 122 m
|
|
Max. temperature of the liquid
|
+30°C
|
|
Poles
|
2
|
|
Insulation class
|
F
|
|
Protection degree
|
IP58
|
|
Voltage
|
Single phase 1~230V ±6-10%
Three phase 3~400V ±6-10% |
|
Max. immersion
|
60 m
|
|
Max. sand content
|
50 ppm
|
Materials
|
Impeller
|
PPO reinforced with glass fibres
|
|
Shaft
|
Stainless steel 430F (EN 1.4105)
|
|
Outer casing
|
Stainless steel AISI 304 (EN 1.4301)
|
|
Discharge casing
|
Stainless steel AISI 304 (EN 1.4301)
|
|
Motor connection
|
Stainless steel AISI 304 (EN 1.4301)
|
