Ebara SF6

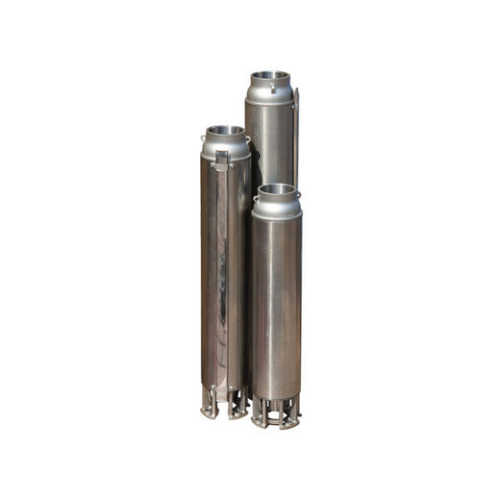

6″ submerged well pump (hydraulic only), lightweight and easily transportable. Suitable for water supply.
Features
Description
Reviews (0)
6″ submerged well pump (hydraulic only), it stands out for its lightness that makes it easily transportable and can be coupled with motors in a water bath or oil bath.
The SF6, with its sturdy, corrosion-resistant design, offers a wide range of performance.
For further technical information see the Databook
• Water supply systems for civil and industrial use
• Pressure boosting systems
• Irrigation and community waterworks
Technical Features
Technical data
|
Flow rate
|
Up to 66 m³/h
|
|
Total head
|
Up to 362 m
|
|
Max. temperature of the liquid
|
+30°C
|
|
Poles
|
2
|
|
Insulation class
|
F (4″ – 6″ OY), (6″ WY)
B (4″ WY) |
|
Protection degree
|
IP 58 (4″ – 6″ OY), (6″ WY)
IP 68 (4″ WY) |
|
Voltage
|
Three-phase 3~400V (±10%)
Three-phase 3~400V (+6% -10%) |
|
Max. immersion
|
350 m with motor in water bath
150 m with motor in oil bath |
|
Max. sand content
|
50 ppm
|
Materials
|
Impeller
|
PPO reinforced with glass fibres
|
|
Shaft
|
Stainless steel 420 (EN 1.4021)
|
|
Outer casing
|
Stainless steel AISI 304 (EN 1.4301)
|
|
Discharge casing
|
Stainless steel AISI 304 (EN 1.4301)
|
|
Motor connection
|
Stainless steel AISI 304 (EN 1.4301)
|
