Ebara WINNER 4N
Horizontal self-priming centrifugal swimming pool pump with built-in prefilter. Perfect for ensuring water circulation in swimming pool filtration systems.
Features
Description
Reviews (0)

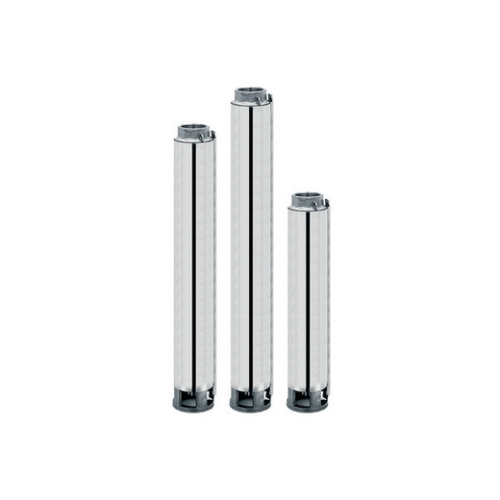

4″ submerged sump pump equipped with a special system of floating impellers with front shim, which allows it to operate even in particularly heavy conditions without blocking and which gives the electric pump a low axial load.
It is a very quiet product that boasts high hydraulic efficiency that can be coupled with motors in water bath or oil bath.
It can also be used in a horizontal position.
For further technical information see the Databook
• Handling of clear water in wells
• Pressurisation of clean water for agricultural, domestic or industrial use
• Irrigation
• Handling of water in general
Technical Features
Technical data
|
Flow rate
|
Up to 21 m³/h
|
|
Total head
|
Up to 370 m
|
|
Max. temperature of the liquid
|
+40°C (depends on the maximum motor temperature)
|
|
Poles
|
2
|
|
Insulation class
|
F (OY), B (WY)
|
|
Protection degree
|
IP 68
|
|
Voltage
|
Single-phase 1~230V ±10% OYM
Three-phase 3~380-415V ±10% OY Single-phase 1~230V -10%+6% WYM Three-phase 3~380-415V -10%+6% WY Three-phase 3~400V -10%+6% WY |
|
Max. immersion
|
350 m with motor in water bath
150 m with motor in oil bath |
|
Max. sand content
|
50 ppm
|
Materials
|
Impeller
|
PC reinforced with glass fibres
|
|
Shaft
|
Stainless steel AISI 304 (EN 1.4301)
|
|
Outer casing
|
Stainless steel AISI 304 (EN 1.4301)
|
|
Discharge casing
|
ASTM CF8
|
|
Motor connection
|
Stainless steel AISI 304 (EN 1.4301)
|
