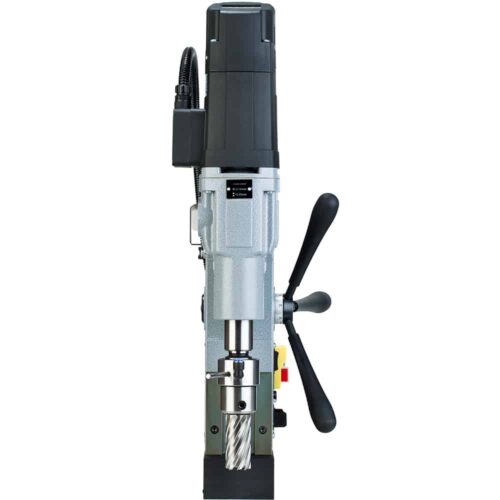

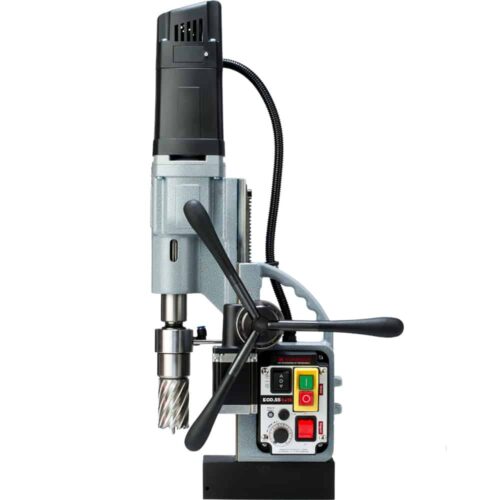

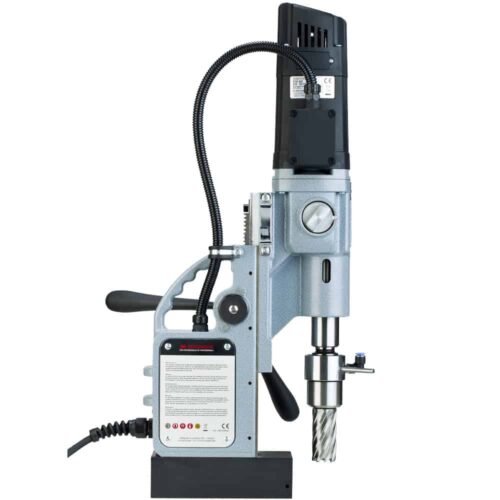

Euroboor ECO.55S+/TA Magnetic Drill Machine
Ø 12 – 55 mm / 12.9 kg
The portable Euroboor ECO.55S+/TA is our magnetic core drilling machine which will actually drill holes in metal with the highest efficiency for you. This magnetic core drilling machine benefits from an automatic drilling functionality with automatic return for annular cutters. Furthermore, the ECO.55S+/TA has a digital display which show the ideal working load and the Smart Restart Technology prevents excessive tool wear and failure. The machine profits also from innovative electronics which offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs
Description
Additional information
Reviews (0)
• Digital display showing ideal power usage
• Smart Restart technology
• Particularly suitable for tapping
• Right/left rotating functionality and electronic speed adjustment
• Easily accessible auto shut-off carbon brushes
• Overheat protection
• High-accuracy capstan hub
• Morse Taper 3 spindle with integrated tool cooling and lubrication
• LED load indicators
• Overload protection
• High-precision height adjustment
• Integrated slide and two-speed oil lubricated gearbox
• Strong dual coil CNC machined magnet

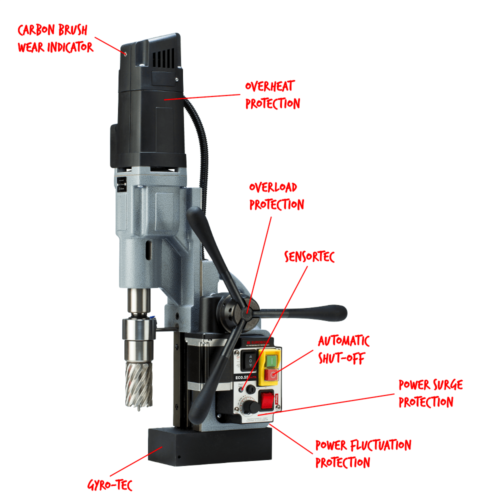

• Carbon brush protection:
– Carbon brush wear indictor
– Automatic shut-off
• GYRO-TEC safety
• Self-protection
– Power surge protection
– Power fluctuation protection
• Magnet LED-indicator
| Annular cutting | Ø 12 – 55 mm |
|---|---|
| Twist drilling | Ø 1 – 23 mm |
| Countersinking | Ø 10 – 60 mm |
| Tapping | M3 – M20 |
| Length | 320 mm |
| Width | 200 mm |
| Height | 490 – 660 mm |
| Stroke | 170 mm |
| Weight | 12.9 kg |
| Magnet (l x w x h) | 168 x 84 x 49 mm |
| Magnetic force | 1850 kg |
| Motor power | 1600 W |
| Total power | 1700 W |
| Speed (no load) | (I) 60 – 275 rpm (II) 100 – 500 rpm |
| Speed (load 1600 W) | (I) 60 – 275 rpm (II) 100 – 500 rpm |
| Spindle (Weldon) | MT3 19,05 mm |
| Voltage | 220 – 240 V / 50 – 60 Hz |
