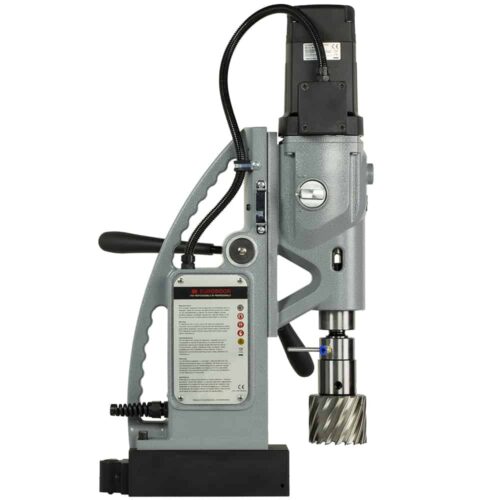

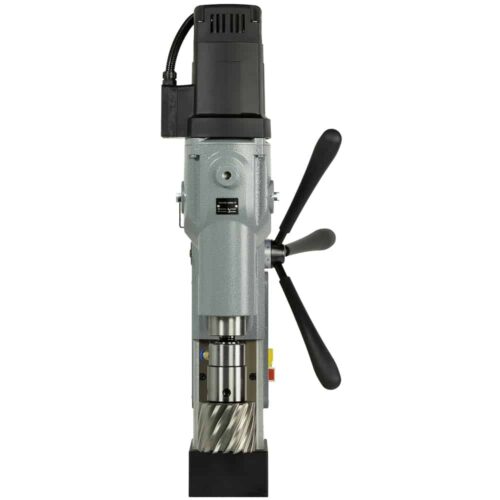

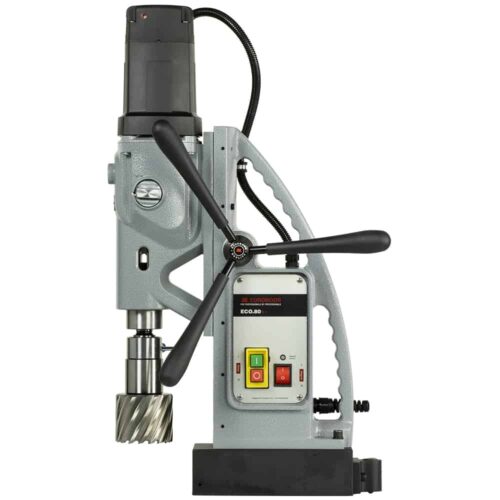

Euroboor ECO.80S+ Magnetic Drill Machine
Ø 12 – 80 mm / 27.3 kg
Thanks to its four-speed oil lubricated gearbox our portable Euroboor ECO.80S+ magnetic core drilling machine is able to tackle twist drilling tasks just as easily as big diameter annular cutter challenges. The innovative electronics in this magnetic core drilling machine offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs.
Description
Additional information
Reviews (0)
• Four- speed gearbox
• Oil lubricated gearbox
• Morse Taper 3 spindle with integrated tool cooling and lubrication
• Strong dual coil CNC machined 2-way magnet

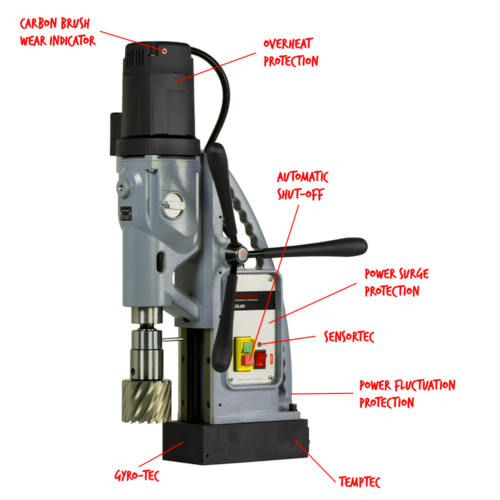

Carbon brush protection:
• Carbon brush wear indictor
• Automatic shut-off
• Suitable for use in areas and workplaces where power supply is of less quality
• Reduced risk of armature damage
• Reduced risk of control unit(s) damage
• Timely service notification to avoid additional cost by unexpected downtime or unnecessary part replacement
| Annular cutting | Ø 12 – 80 mm |
|---|---|
| Twist drilling | Ø 1 – 31,75 mm |
| Countersinking | Ø 10 – 85 mm |
| Length | 365 mm |
| Width | 310 mm |
| Height | 510 – 710 mm |
| Stroke | 260 mm |
| Weight | 27.3 kg |
| Magnet (l x w x h) | 220 x 110 x 64 mm |
| Magnetic force | 3,000 kg |
| Motor power | 1,700 W |
| Total power | 1,800 W |
| Speed (no load) | (I) 200 rpm (II) 300 rpm (III) 415 rpm (IV) 650 rpm |
| Speed (load 1,700 W) | (I) 150 rpm (II) 200 rpm (III) 275 rpm (IV) 400 rpm |
| Spindle (Weldon) | MT3 19,05 mm |
| Voltage | 110 – 120 V / 60 Hz 220 – 240 V / 50 – 60 Hz |
| Case content | 1 x ECO.80S+ Magnetic drilling machine 1 x safety guard 3 x handles 1 x hex key 2.5 mm 1 x hex key 4 mm 1 x hex key 5 mm 1 x lubrication system 1 x safety chain 1 x bottle (200 ml) of IBO.10 cutting oil 1 x arbor MT3 – 19,05 Weldon (3/4"), including lubrication ring (IMC.30/19-N) 1 x morse taper ejector drift key 1 x user manual 1 x safety ear protection 1 x safety goggles 1 x safety gloves |
