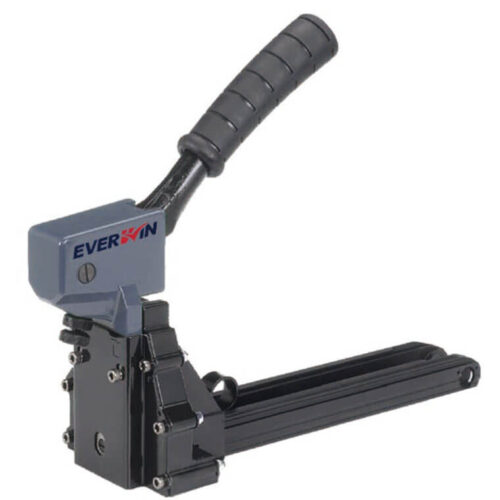

Everwin Mechanical Strip Carton Stapler 34.7mm (1-3/8″) (Model No. MCS19-35)
The MCS carton closer range is designed for all packaging staples known in the current packaging market. The tools have a penetration adjustment which in combination with the robust bases and light weight bodies help provide a great user experience.
- APPLICATIONS
- Carton Box Sealing
- Packaging
Description
Reviews (0)
FEATURES
FULL MECHANICAL
No air source required
DEPTH OF CLINCH AND PENETRATION ADJUSTABLE
Fully adjustable according to your sealing needs
ERGONOMICALLY SOUND
Light weight and well-balanced
OPTIONAL AUX HANDLE
Shock-absorbent auxiliary handle
ALL METAL CONSTRUCTION
Endures rough production work environments
NOISE MINIMIZED
Mechanical operation generates minimal noise
TOOL SPECIFICATION
| Weight | 1.9 kgs (4.2 lbs) |
|---|---|
| Height | 295mm (11.6″) |
| Width | 115mm (4.5″) |
| Length | 390mm (15.4″) |
| Operating Pressure | Mechanical Tool N/A |
| Driving Power (in-lbs @100psi) | Mechanical Tool N/A |
| Air Consumption (L/sec @90psi) | Mechanical Tool N/A |
FASTENER SPECIFICATION
| Type | 34.7mm (1-3/8″) Crown Carton Staples |
|---|---|
| Loading Capacity | 100 |
| Shank Type | Smooth |
| Staple Length | 15 & 18mm (5/8″ & 3/4″) |
| Staple Crown Width | 34.7mm (1-3/8″) |
| Staple Wire Dia. | 0.9×2.3mm (0.035″x0.090″) |
