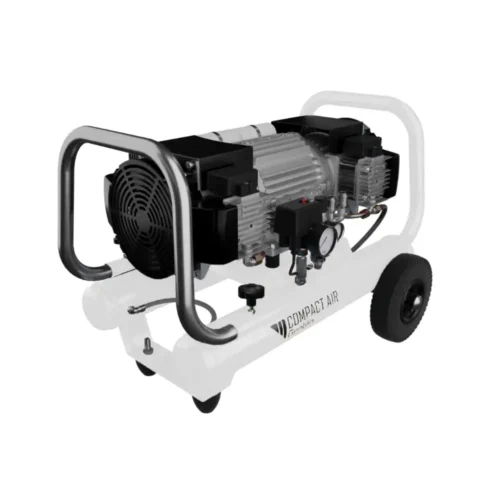

Gentilin 10L 4 kW Portable Air Piston Compressor Pro-S – C660/10
Description
Reviews (0)
Technical Data
| Condensate Treatment | Optional |
|---|---|
| Particulate Treatment | – |
| Air purity class (ISO 8573-1) | X-X-0 |
| Voltage (V) | 400,00 |
| Frequency (Hz) | 50,00 |
| Nominal rating (kW) | 4,00 |
| Nominal rating (HP) | 5,50 |
| Rotation speed (rpm) | 1.400,00 |
| Starting current (A) | 6,50 |
| Number of cylinders | 4 |
| FAD (L/min) | 660,00 |
| Air Delivery (L/min @5 bar) | 400,00 |
| Air Delivery (L/min @8 bar) | 340,00 |
| Maximum pressure (bar) | 10,00 |
| Noise level (3,00m @ 5,00 bar (dB(A)) | 76,00 |
| Duty cycle | S1 100% |
| Tank Coating | Epodissica |
| Tank capacity (lt) | 10,00 |
| First Maintenance (hours) | 3000 |
| Hour Meter | Incluso |
| Tank Automatic Drain Valve | Optional |
Product dimensions
| Lenght (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 790,00 | 580,00 | 570,00 | 50,00 |
Single piece packaging dimensions
| Lenght (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 810,00 | 600,00 | 600,00 | 73,00 |
Full pallet packaging dimensions
| Dimensions (mm) | Weight (Kg) | Pieces |
|---|---|---|
| 1200x800x1600 | 307,00 | 4 |
