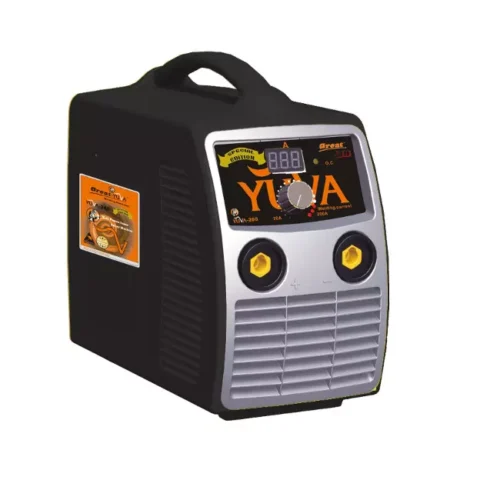

Great Yuva 200 A Single-Phase Waterproof Arc Welding Machine Yuva 200 Special Edition
Features |
|
| Brand Name : | Great Yuva |
| Type of Product : | ARC Welding Machine |
| Supply Voltage : | 220V+10% |
| Technology : | IGBT |
| Input Power : | – |
| Frequency : | 50/60 Hz |
Description
Reviews (0)
Features:
- SMT surface mount design on PCBs, with advance craft
- With good protection of under voltage, overvoltage and over current, it makes machine safe and reliable
- Self-adaptive power switch, wide range from 110V to 280V
- CC feature, with stable arc
- Modular functional unit, which highly enhance machine reliability
- Next generation IGBT, with high stability
- With advanced high efficiency inverter technique 30KHz, high working frequency,eneygy saving and environment protection
- Welding cable can be lengthened to 500 meters, and welding performance is stable
- Effectively resolves the voltage fluctuation problems so can be used generator during outdoor welding works.
- Suitable for using acid electrode, basic electrode and high strength electrode, etc.
- Built-in VRD protection, meet CE requirement.
- With five proof industry design, using life long, working stable and reliable in kinds of adverse circumstances.
Additional Specifications:
- Input voltage range (V) – 110-280V
- Rated input capacity (KVA) – 6.0
- Safe no-load voltage (V) – 13.5
- Rated output current range (A) – 20-200A
- Rated output voltage range (V) – 20.8-24.4V
Exclusion for replacement:
- Welding Input Cable
- Cooling Fan
- Power switch
- Euro connectors
Type of Product:Â ARC Welding Machine
Supply Voltage:Â 110-280V
Technology:Â IGBT
Input Power:Â 7.5KVA
Frequency:Â 50/60 Hz
Phase:Â 1 Phase
Output Voltage:Â 80V
Weight:Â 6.8 kg
Max. Electrode Size:Â 1.8/2.5/3.2/4.0
Welding Current at 60% Duty Cycle:Â 275 A
Welding current at 100% Duty Cycle:Â 210 A
Protection:Â IP23
Model No:Â YUVA-300
Insulation Class:Â F
Warranty Duration:Â 12 Months
Dimension:Â 350x172x290 mm
Accessories:Â welding holder, welding cable, earthing cable and earthing clamp
Series:Â YUVA
Features:Â Safe no load voltage – 13.5V, Rated output voltage range – 20.8-27.6V
Electrode Diameter:Â 1.8/2.5/3.2/4.0
Current:Â 300 Amp
Efficiency (%):Â 0.85
Current Range:Â 201-300 Amp
Country of Origin:Â India
Machine Type:Â Arc Welding
Name of Manufacturer/Packer/Importer:Â British Engineering Company
