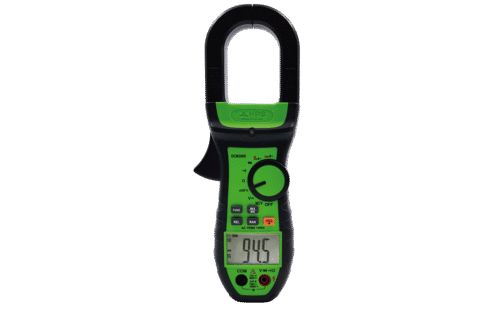

KPS DCM3000 – 1000A TRMS AC Clamp
| TRMS Clamp Meter 1000AC | |||
| The DCM range consists of three models, DCM3000, DCM3500T and DCM4000T, they are the perfect tool for professionals dedicated to Low Voltage applications and maintenance of electrical installations in the industrial or tertiary sector. This new range offers measurement capacity up to 1000A AC (the 4000T model also incorporates DC current measurement up to 1000A), which together with TRMS measurements and the CATIV 600V category of use make it the ideal instrument for applications that require precision and reliability with maximum safety. | |||
| Features | |||
| – | AC/DC Voltage, AC current and resistance measurements | ||
| – | True Root Mean Square (TRMS) measurement | ||
| – | Continuity buzzer and diode test | ||
| – | Non-contact voltage detection | ||
| – | Autoranging | ||
| – | CAT IV 600V according to EN 61010 | ||
| – | 6,000 counts | ||
| – | Max/min functions | ||
| – | Relative function | ||
| – | Auto power OFF and low battery display | ||
| – | TRMS measurements | ||
| – | Data logging: 100 groups | ||
| – | Data Hold | ||
| – | Autoranging, Auto-off, display backlight and low battery display | ||
| – | RS232 communication | ||
| – | CAT III 600V according to EN 61010 | ||
Description
Reviews (0)
| Altern current, up to | 1000A |
| Altern voltage, up to | 750V |
| Direct voltage, up to | 1000V |
| Resistance, up to | 60MΩ |
| Frequency, up to | 9999MHz |
| Continuity test | Yes |
| Diode check | Yes |
| Non-contact voltage detection | Yes |
| Counts | 6000 |
| True RMS measurement | Yes |
| Relative measurements | Yes |
| MAX/MIN values | Yes |
| Autoranging | Yes |
| Jaw size | 40mm, 1.6″ |
| Auto OFF | Yes |
| Category according to EN61010 | CAT IV 600V |
