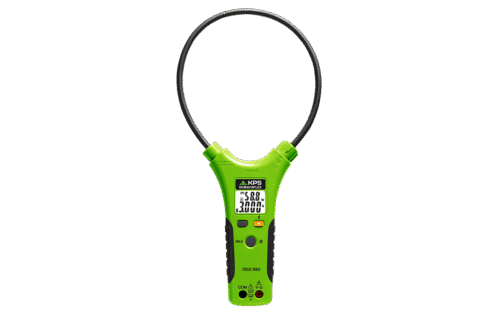

KPS DCM4018 FLEX – 3000A AC Flexible Clamp Meter
| The Flexible AC Clamp Meter DCM4018FLEX allows the user to get into tight spaces and makes wire access easier or to measure around bus bars or big-sized conductors getting at the same time a larger range of measurement (up to 3000AC A) and provides a direct ‘’Amp’’ reading display. | |
| Features | |
| – | 10,000 counts LCD dual digital backlight display |
| – | Fully automatic measuring on ACA, ACV, DCV, Ω, Hz |
| – | True RMS reading on ACA/ACV |
| – | AC 3,000A Capability with 18 inch head cable length |
Description
Reviews (0)
| Specifications | Range | Resolution | Accuracy |
| AC Ampere | 30A* | 0.01A | ±(3.0% + 5D) |
| 300A | 0.1A | ±(3.0% + 5D) | |
| 3000A | 1A | ±(3.0% + 5D) | |
| AC Voltage | 1000V** | 0.1V | ±(1.5% + 5D) |
| DC Voltage | 1000V*** | 0.1V | ±(0.7% + 5D) |
| AC Frequency | 100Hz**** | 0.1Hz | ±(0.3% + 3D) |
| 1000Hz | 1Hz | ±(0.3% + 3D) | |
| 10kHz | 0.01Hz | ±(0.3% + 3D) | |
| Resistance /
Continuity |
1000Ω | 1Ω | ±(0.9% + 2D) |
| 10kΩ | 0.001kΩ | ±(0.9% + 2D) | |
| * Minimum Reading is 1.00A | |||
| ** Minimum Reading is 3.0V | |||
| *** Minimum Reading is +2.4V / -0.7V | |||
| **** Minimum Reading is 10Hz | |||
