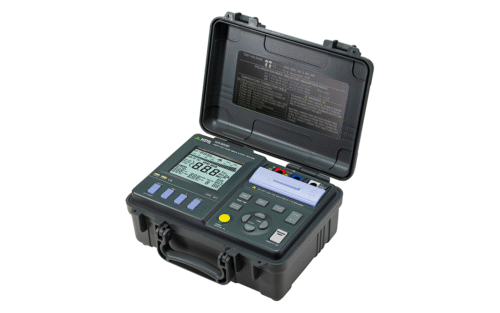

KPS MA500 – 5KV Insulation Resistance Tester
| Features | |
| * | Broad Range of Testing Voltage : |
| – | Testing voltages with broad range can be generated (from 250 V to 5 KV). |
| – | Testing voltage can be preset as 250 V, 500 V, 1 KV, 2.5 KV, or 5 KV, or as a voltage increasing or decreasing in steps of 25 V or 100 V. |
| * | Insulation Diagnosis : |
| – | PI and DAR can be automatically calculated and displayed; |
| – | Step-voltage measurements and temperature compensation is carried out. |
| * | Large Storage Memory : |
| – | Up to 100 manually tested data and 10 groups of log-test data can be saved. |
| – | Test data can be read on LCD, or uploaded to PC |
| * | Clear Display : |
| – | Large-screen display. Test result is displayed with indication through a graduation bar. |
| – | LCD screen is backlit, which is suitable for viewing when it is dark. |
| * | PC Communication : |
| – | The meter is equipped with a USB interface, through which the saved test data can be uploaded to a PC for further table/figure making and report generating with convenience. |
| * | Robust and Durable : |
| – | With a compact structure, the tester is robust, durable and portable. |
| * | Powered by Batteries : |
| – | With a selection switch, the tester can be powered by an alkaline battery. |
| – | This tester can be continuously operated for a longer period of time than similar meters if a LR14 alkaline battery is used. |
Description
Reviews (0)
| Specifications | ||
| Operating Voltage | Measuring Range | Accuracy |
| 250V DC | 0.01MΩ~2.5GΩ | ±(5%+5) |
| 2.51GΩ~250GΩ | ±(20%+10) | |
| 500V DC | 0.01MΩ~5.0GΩ | ±(5%+5) |
| 5.01GΩ~500GΩ | ±(20%+10) | |
| 1000V DC | 0.01MΩ~10GΩ | ±(5%+5) |
| 10.01GΩ~500GΩ | ±(20%+10) | |
| 501GΩ~999GΩ | ±(30%+20) | |
| 2.5KV DC | 0.01MΩ~25GΩ | ±(5%+5) |
| 25.1GΩ~500GΩ | ±(20%+10) | |
| 501GΩ~999GΩ | ±(30%+20) | |
| 1TΩ~2.5TΩ | ±(30%+40) | |
| 5KV DC | 0.01MΩ~50GΩ | ±(5%+5) |
| 50.1GΩ~500GΩ | ±(20%+10) | |
| 501GΩ~999GΩ | ±(30%+20) | |
| 1TΩ~5TΩ | ±(30%+40) | |
| Leakage Current | ||
| Range | Measuring Range | Accuracy |
| 10nA | 1.00nA~9.99nA | ±(15%+1nA) |
| 100nA | 9.0nA~99.9nA | ±(15%+5) |
| 1000nA | 100nA~999nA | ±(2.5%+5) |
| 10μA | 0.90μA~9.99μA | |
| 100μA | 9.0μA~99.9μA | |
| 1000μA | 90μA~999μA | |
| 3mA | 0.90mA~3.00mA | |
| Resistance | ||
| Range of insulation | Range of humidity | Range of temperature |
| 0Ω~100MΩ | <85> | 23℃ ±5℃ |
| 101Ω~20GΩ | <75> | 73℉ ±9℉ |
| 21GΩ~500GΩ | <65> | |
| 501GΩ~5TΩ | <55> | |
| Voltage | ||
| Test Mode | DC Voltage | AC Voltage |
| Test Range | ±(50V~1000V) | ±50V~750V |
| (50Hz~60Hz) | ||
| Precision error | ±(5%+5) | ±(5%+5) |
| Input Resistance | Approx. 10MΩ | Approx. 10MΩ |
| Temperature | ||
| Measuring Range | Measuring Precision | |
| -10℃~0℃ | ±1.5℃ | |
| 0℃~40℃ | ±2.0℃ | |
| 40℃~70℃ | ±1.5℃ | |
