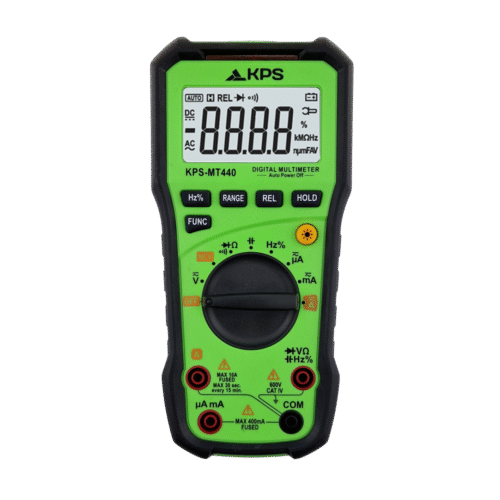

KPS MT440 – 600V Digital Multimeter
| Features | |
| – | Display 4000 counts |
| – | Auto Ranging |
| – | Manual Ranging |
| – | Auto Power Off |
| – | Relative Measurement |
| – | Non-Contact Voltage Detector |
| – | Diode Open voltage 1.5V |
| – | Continuity Buzzer <50±20Ω |
| – | Data Hold |
| – | Low Battery Display |
| – | Display Backlight |
Description
Reviews (0)
| Specifications | Range | Resolution | Accuracy |
| DC Voltage | 400mV | 0.1mV | ±(0.8%+3) |
| 4V/40V/400V/600V | 1mV/10mV/0.1V/1V | ±(0.5%+5) | |
| AC Voltage | 400mV | 0.1mV | ±(1.0%+5) |
| 4V/40V/400V | 1mV/10mV/0.1V | ±(0.8%+5) | |
| 600V | 1V | ±(1.2%+3) | |
| DC Current | 400μA/4000μA/40mA/400mA | 0.1μA/1μA/0.01mA/0.1mA | ±(0.8%+2) |
| 10A | 10mA | ±(2.0%+5) | |
| AC Current | 400μA/4000μA/40mA/400mA | 0.1μA/1μA/0.01mA/0.1mA | ±(1.5%+2) |
| 10A | 10mA | ±(3.0%+5) | |
| Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ | 0.1Ω/1Ω/10Ω/0.1kΩ/4kΩ | ±(1.0%+5) |
| 40MΩ | 10kΩ | ±(1.2%+15) | |
| Capacitance | 40nF/400nF/4μF/40μF/100μF | 10pF/0.1nF/1nF/10nF/0.1μF | ±(3.0%+5) |
| Frequency | 5Hz/50Hz/500Hz/5kHz | 0.001Hz/0.01Hz/0.1Hz/1Hz | ±(0.5%+2) |
| 50kHz/500kHz/5MHz | 10Hz/0.1kHz/1kHz | ±(0.5%+2) | |
| Duty Cycle | 0.1%~99.9% | 0.10% | ±(2.0%+5) |
