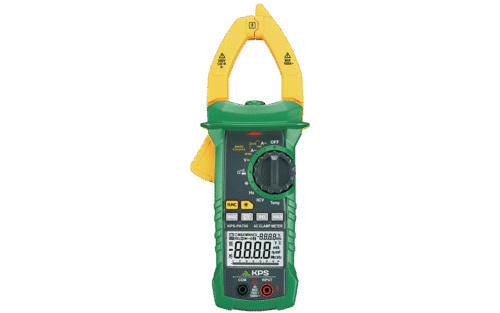

KPS PA700 – 1000A AC Clamp Meter
| Features | |
| – | Display 6000 counts |
| – | Jaw Opening Ф40mm/1.6″ |
| – | Auto & Manual Ranging |
| – | Auto Power Off |
| – | Non-Contact Voltage Detector |
| – | Relative Measurement |
| – | Diode Open Voltage 3.2V |
| – | Continuity Buzzer <50Ω |
| – | Data Hold |
| – | Display Backlight |
| – | Max/Min Measurement |
| – | Work Light |
| – | True Root Mean Square |
| – | Low Battery Display |
| – | Dual Display |
| – | Bar Graph |
Description
Reviews (0)
| Specifications | Range | Resolution | Accuracy |
| DC Voltage | 660mV | 0.1mV | ±(0.8%+2) |
| 6.6V/66V/660V | 0.001V/0.01V/0.1V | ±(0.7%+2) | |
| 1000V | 1V | ±(0.8%+2) | |
| AC Voltage | 660mV | 0.1mV | ±(1.5%+10) |
| 6.6V/66V/660V | 0.001V/0.01V/0.1V | ±(0.8%+3) | |
| 750V | 1V | ±(1.0%+4) | |
| AC Current | 66A/660A/1000A | 0.01A/0.1A/1A | ±(2.5%+6) |
| Resistance | 660Ω/6.6kΩ/66kΩ/660kΩ | 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ | ±(0.8%+3) |
| 6.6MΩ/66MΩ | 0.001MΩ/0.01MΩ | ±(1.2%+3) | |
| Capacitance | 6.6nF/66nF/660nF/6.6µF | 0.001nF/0.01nF/0.1nF/0.001µF | ±(4.0%+5) |
| 66µF/660µF/6.6mF/66mF | 0.01µF/0.1µF/0.001mF/0.01mF | ±(4.0%+5) | |
| Frequency (A) | 66Hz/660Hz | 0.01Hz/0.1Hz | ±(1.5%+5) |
| Frequency (V) | 66Hz/660Hz/6.6kHz | 0.01Hz/0.1Hz/0.001kHz | ±(1.5%+5) |
| Logic Frequency | 66Hz/660Hz/6.6kHz/66kHz | 0.01Hz/0.1Hz/0.001kHz/0.01kHz | ±(0.5%+2) |
| 660kHz/6.6MHz/66MHz | 0.1kHz/0.001MHz/0.01MHz | ±(0.5%+2) | |
| Duty Cycle | 0.1%~99.9% | 0.10% | ±(3.0%) |
| Temperature | -20℃~1000℃/-4℉~1832℉ | 1℃/1℉ | ±(3.0%+3) |
