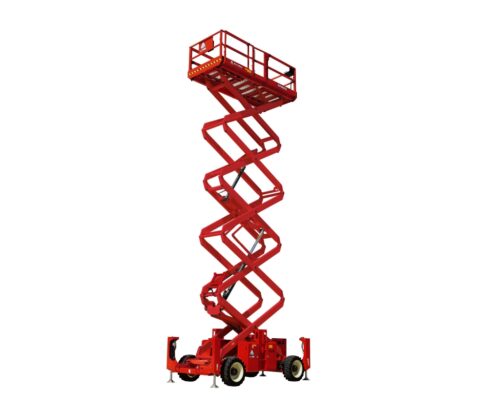

LGMG SR1623 Aerial Work Platforms
Lift capacity:
230kg
Max. work height:
21.8m
Description
Reviews (0)
Product Feature
Powerful four-wheel drive and big platform with high capacity for outdoor requirement
Powerful four-wheel drive and big platform with high capacity for outdoor requirement
Precise weighing system with pressure sensor and overload alarm function
Closed loop hydraulic driving system with high efficiency and quick response
Automatic leveling function enables machine to work on the 7°slope
Product Parameter
| Model | SR1623 | SR5390 |
|---|---|---|
| Work Height | 18 m | 59ft |
| Platform Height – Elevated （A） | 16 m | 52ft6in |
| Main Platform Length（E） | 3.98 m | 13ft |
| Platform Length – Single Extension | 5.44 m | 17ft10in |
| Platform Length – Double Extension（F） | 6.58 m | 21ft7in |
| Platform Height – Lowered | 2.08 m | 6ft10in |
| Platform Width（C） | 1.83 m | 6ft |
| Overall Height – Rails Up （D） | 3.18 m | 10ft5in |
| Overall Height – Rails Down | 2.5 m | 8ft2in |
| Overall Width（G） | 2.3 m | 7ft6in |
| Wheelbase（B） | 2.85 m | 9ft4in |
| Ground clearance – Center | 0.23 m | 9in |
| Platform Capacity | 680 kg | 1500 lbs |
| Capacity On Deck Extension | 230 kg | 510 lbs |
| Gradeabilty – Lowered | 40% / 30% | 40% / 30% |
| Lift/Lower Time | 55/55 sec | 55/55 sec |
| Drive Mode | 4*4 / 4*2 | 4*4 / 4*2 |
| Power Source | Kubota V2403 | Kubota V2403 |
| Machine Weight (With Outriggers) | 8,000 kg | 17640 lbs |
