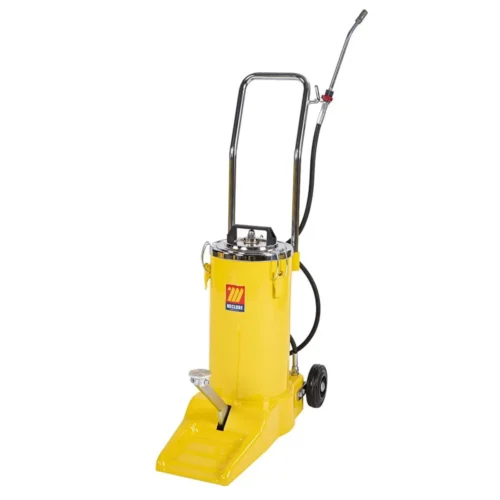

MECLUBE WHEELED MANUAL HIGH PRESSURE GREASE PEDAL PUMP FOR DRUMS OF 16 kg 016-1144-000 | MADE IN ITALY

BRAND : MECLUBE
ITEM NO.: 016-1144-000
ORIGIN : ITALY
WHEELED TANK : 16 kg
FOR DRUMS WITH CAPACITY OF 16 kg
WEIGHT : 16.6 kg
VOLUME : 0,090 M3
DIMENSIONS : H 98 X L 60 X W 35 CM

OUTLET GREASE PRESSURE 400 BAR, 60 G DELIVERY EACH 10 CYCLES OF THE LEVER

EQUIPPED WITH:
1 – FOLLOWER PLATE
2 – HOSE
3 – BALL BRASS
4 – RIGID PIPE

014-1059-012 FOLLOWER PLATE Ø 220 mm WITH SPRING

906-0142-020 1SC 1/4” HOSE F 1/4”– F 10X1 2.0 M LENGTH
WEIGHT : 0.66 kg

017-1155-000 BALL BRASS SPIGOT THREAD M-F 10X1 mm
BALL BRASS SPIGOT

017-1156-000 RIGID PIPE 200 mm WITH 4-JAWS COUPLER
THREAD M 10X1 mm
