MILLER MAX STAR 161 S, 907709
An unbeatable mix of Performance and portability, the Miller Maxstar 161s is DC TIG/Stick welding power source, manufactured in USA, providing stable arc performance, energy efficiency, and a reduced weight of 6 kgs.
Maxstar 280 can work using 120V or 220V and puts out an impressive 160 Amps.
The machine comes with 3 Years International Warranty
Description
Reviews (0)
Product Details

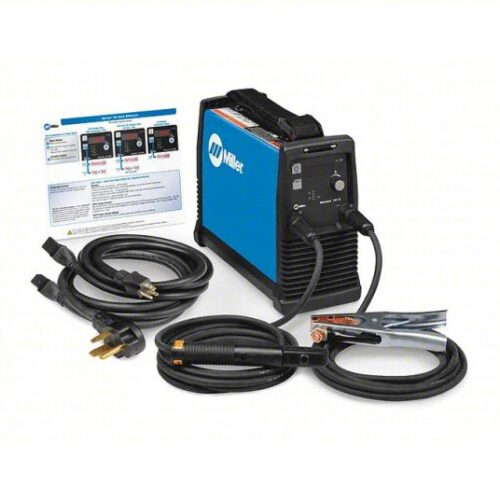

The Miller Maxstar stick package comes with a power source and includes a stick electrode holder with cable, a work cable with clamp, and a carrying strap for portability. It is available with or without a protective case. Please see the product detail page for the full list of equipment included with each product. Products listed as “power source only” do not come with the stick package.
Catalog PageN/A
BrandMILLER ELECTRIC
Manufacturer Part Number907709
Welder SeriesMaxstar 161 S
Cable Connection TypeDinse-Style
Effective Input Current14.31 A @ 240V AC (Single-Phase); 14.68 A @ 120V AC (Single-Phase); 22.55 A @ 240V AC (Single-Phase); 23.16 A @ 120V AC (Single-Phase)
Includes
- 10 ft. Work Cable with Clamp and 25 mm Dinse-Style Connector
- 13 ft. Electrode Cable with Holder and 25 mm Dinse-style Connector
Input Frequency50/60 Hz
Input Voltage
- 110/115/120V AC
- 220/230/240V AC
Maximum Amperage (Stick)160 A
Minimum Amperage (Stick)20 A
Open Circuit Voltage48 V DC
Overall Depth13.5 in
Overall Height10.3 in
Overall Width5.61 in
PhaseSingle-Phase
Plug Type5-15P
PolarityDC
Power Cord Length6-1/2 ft
ProcessStick Welding (SMAW)
Rated Output @ Duty Cycle (Stick)
- 110 A @ 24.4 V @ 100% (240 V)
- 160 A @ 26.4 V, 60% (240 V)
- 60 A @ 22.4 V, 100% (120 V)
- 90 A @ 23.6 V, 30 % (120 V)
Remote Connection Type6-Pin (Miller)
Weight13 lb
Welding Power Source TypeCC
Work Cable Length10 ft
UNSPSC23171508
