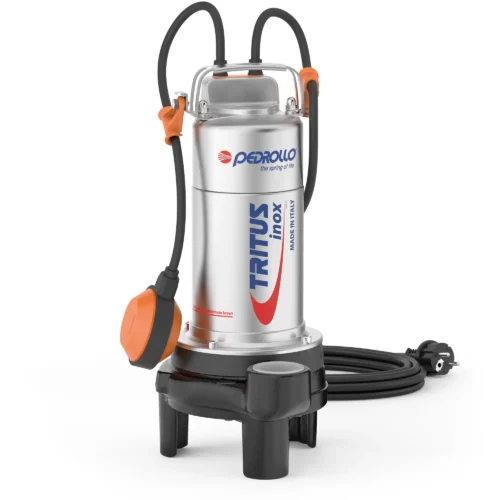

Pedrollo TRITUS-INOX Submersible sewage grinder pumps
The TRITUS-INOX series is equipped with a robust, hardened stainless steel blade, expertly designed to cut through solids and fibers found in domestic wastewater and sewage, for pressurized for pressurized transfer of materials into sewage systems via small-diameter piping.
Description
Reviews (0)
Technical Features
| Flow rate | up to 250 l/min (15 m³/h) |
| Head up | up to 24 m |
| Liquid temperature | up to +40° C |
| Capable of processing suspended solids | – |
| Maximum operating depth below water level | up to 5 m (with an appropriately sized power cable) |
| Minimum immersion for continuous service | 300 mm |
| Motor | 2 poles |
| Ingress protection rating | IP 68 |
Construction Materials
| Pump housing | Cast iron |
| Impeller | Technopolymer |
| Motor sleeve | Stainless steel AISI 304 |
| Shaft | Stainless steel AISI 431 |
| Grinder | Stainless steel AISI 440C temprato |
