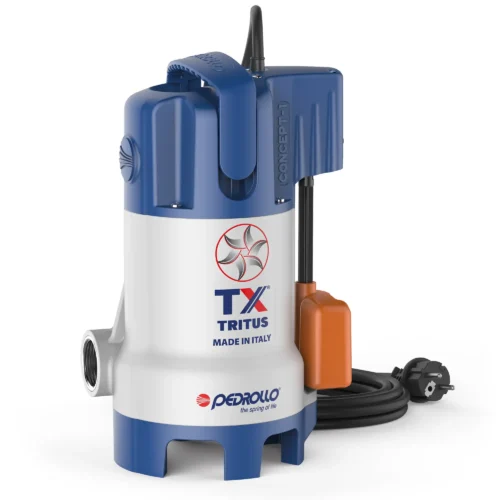

Pedrollo TRITUS-TX Submersible sewage grinder pumps
The TRITUS-TX grinder pump is equipped with a robust, hardened stainless steel blade, expertly designed to cut through solids and fibers found in domestic wastewater and sewage. It includes a compact, integrated magnetic float switch with a vertical sliding mechanism. This innovative design ensures outmost electrical safety while facilitating operation in confined spaces, requiring as little as 220 mm of clearance from the pit wall.
Description
Reviews (0)
Technical Features
| Flow rate | up to 90 l/min (5.4 m3/h) |
| Head up | up to 12 m |
| Liquid temperature | up to +40° C |
| Capable of processing suspended solids | – |
| Maximum operating depth below water level | up to 5 m (with an appropriately sized power cable) |
| Draining capability | up to 85 mm |
| Motor | 2 poles |
| Ingress protection rating | IP 68 |
Construction Materials
| Pump housing | Technopolymer |
| Impeller | NorylTM |
| Motor sleeve | Stainless steel AISI 304 |
| Shaft | Stainless steel AISI 431 |
| Grinder | Stainless steel AISI 440C temprato |
