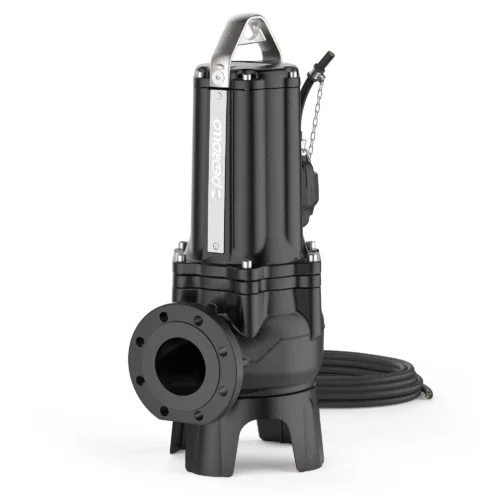

Pedrollo VXC4 Medium Flow Submersible sewage pumps
The VXC4 series is constructed from thick stainless steel and cast iron, offering exceptional robustness, abrasion resistance, and durability. Equipped with a VORTEX-type impeller, the pumps are designed to drain sewage, sludgemixed water, and activated and putrid sludge. They are suitable for a wide range of applications, including sewers, tunnels, excavations, canals, and underground parking facilities.
Description
Reviews (0)
Technical Features
| Flow rate | up to 2200 l/min (132 m3/h) |
| Head up | up to 12.2 m |
| Liquid temperature | up to +40° C |
| Capable of processing suspended solids | up to Ø 100 mm |
| Maximum operating depth below water level | up to 10 m (with an appropriately sized power cable) |
| Minimum immersion for continuous service | 550 mm |
| Motor | 4 poles |
| Ingress protection rating | IP 68 |
Construction Materials
| Pump housing | Cast iron |
| Impeller | Cast iron |
| Motor case | Cast iron |
| Shaft | Stainless steel AISI 431 |
