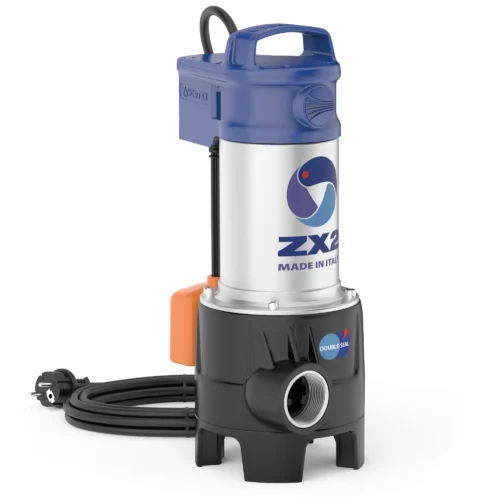

Pedrollo ZXm 2-GM Submersible pumps for slightly sewage
ZXm 2-GM pumps are recommended for drainage of sewage in the domestic and civil sectors, for the evacuation of dirty water even in very small spaces (sumps of only 220 mm side). The VORTEX impeller allows the pumping of solids with a diameter of up to 40 mm and, thanks to its special geometry, guarantees safe operation against clogging.
Description
Reviews (0)
Technical Features
| Flow rate | up to 400 l/min (24 m³/h) |
| Head up | up to 13 m |
| Liquid temperature | up to +40° C |
| Capable of processing suspended solids | – up to Ø 30 mm for ZXm 2/30-GM – up to Ø 40 mm for ZXm 2/40-GM |
| Maximum operating depth below water level | up to 5m (with an appropriately sized power cable) |
| Minimum immersion for continuous service | – 265 mm for ZXm 2/30-GM – 275 mm for ZXm 2/40-GM |
| Motor | 2 poles |
| Ingress protection rating | IP 68 |
Construction Materials
| Pump housing | Fibreglass-filled technopolymer |
| Impeller | Fibreglass-filled technopolymer |
| Motor sleeve | Stainless steel AISI 304 |
| Shaft | Stainless steel AISI 431 |
