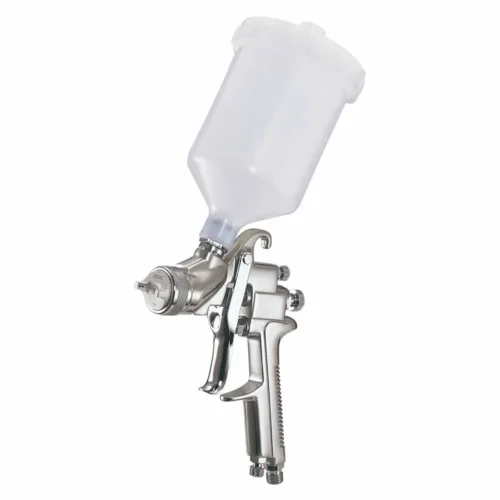

Prowin K-506M Air Spray Gun
Spray Gun is mainly applied for car refinishing, House decorating, industrial/construction purpose, tanning, wood working, etc.
Prowin Tools Company’s Spray Gun is produced for excellent atomization and pattern; suitable for both oil and water-based paintings. Nozzle and Needle are precisely made of Stainless Steel for superb performances and long life.
Description
Conventional gravity feed spray gun, suitable for industrial purpose and car refinishing painting. Equipped with a 600c.c. gravity cup, a spanner, a cleaning brush and a paint filter.
|
Specification
|
Turn – up Kit
|
|||||
|---|---|---|---|---|---|---|
|
Model No
|
Nozzle Size
|
Fluid Output
|
Pattern Width
|
Air Consumption
|
Model No
|
Nozzle Size
|
|
K-506M-08
|
0.8 mm
|
110 ml
|
240 mm
|
190 l/min
|
SG008-506-08
|
0.8 mm
|
|
K-506M-11
|
1.1 mm
|
160 ml
|
250 mm
|
190 l/min
|
SG008-506-11
|
1.1 mm
|
|
K-506M-14
|
1.4 mm
|
210 ml
|
260 mm
|
190 l/min
|
SG008-506-14
|
1.4 mm
|
|
K-506M-18
|
1.8 mm
|
260 ml
|
270 mm
|
190 l/min
|
SG008-506-18
|
1.8 mm
|
|
K-506M-20
|
2.0 mm
|
300 ml
|
280 mm
|
190 l/min
|
SG008-506-20
|
2.0 mm
|
|
K-506M-25
|
2.5 mm
|
300 ml
|
290 mm
|
190 l/min
|
SG008-506-25
|
2.5 mm
|
|
• Type : Gravity
• Cup Capacity : 600 c.c. • Fluid Inlet : M16×1.5P • Air Inlet : 1/4″ |
• Working Pressure : 30~43 psi • Standard Nozzle : 1.4 mm • Gun Weight : 486 gs |
|||||
