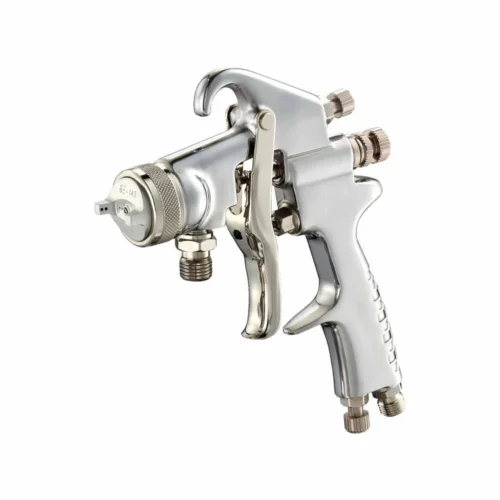

Prowin K-523P Air Spray Gun
Spray Gun is mainly applied for car refinishing, House decorating, industrial/construction purpose, tanning, wood working, etc.
Prowin Tools Company’s Spray Gun is produced for excellent atomization and pattern; suitable for both oil and water-based paintings. Nozzle and Needle are precisely made of Stainless Steel for superb performances and long life.
Description
Conventional pressure feed spray gun, suitable for connecting with diaphragm pump or paint pressure tank for mass painting work on construction or industrial purpose. Equipped with a spanner and a cleaning brush.
|
Specification
|
Turn – up Kit
|
|||||
|---|---|---|---|---|---|---|
|
Model No
|
Nozzle Size
|
Fluid Output
|
Pattern Width
|
Air Consumption
|
Model No
|
Nozzle Size
|
|
K-523P-08
|
0.8 mm
|
140 ml
|
240 mm
|
180 l/min
|
SG008-523-08
|
0.8 mm
|
|
K-523P-11
|
1.1 mm
|
210 ml
|
240 mm
|
190 l/min
|
SG008-523-11
|
1.1 mm
|
|
K-523P-14
|
1.4 mm
|
170 ml
|
255 mm
|
190 l/min
|
SG008-523-14
|
1.4 mm
|
|
K-523P-18
|
1.8 mm
|
190 ml
|
265 mm
|
200 l/min
|
SG008-523-18
|
1.8 mm
|
|
K-523P-20
|
2.0 mm
|
240 ml
|
275 mm
|
200 l/min
|
SG008-523-20
|
2.0 mm
|
|
K-523P-25
|
2.5 mm
|
300 ml
|
290 mm
|
200 l/min
|
SG008-523-25
|
2.5 mm
|
|
• Type : Pressure Feed
• Cup Capacity : Non • Fluid Inlet : 3/8″ • Air Inlet : 1/4″ |
• Working Pressure : 30~43 psi
• Standard Nozzle : 1.8 mm • Gun Weight : 486 gs |
|||||
