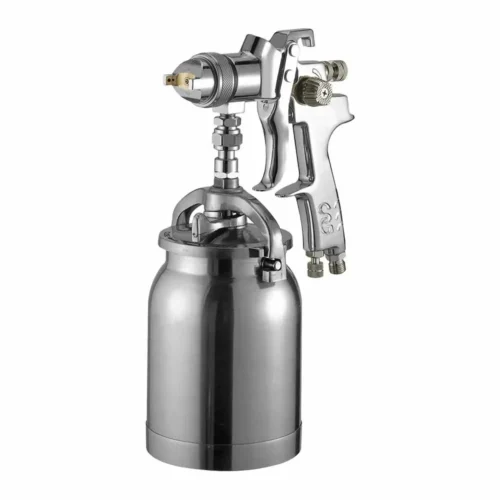

Prowin K-800S Air Spray Gun
Spray Gun is mainly applied for car refinishing, House decorating, industrial/construction purpose, tanning, wood working, etc.
Prowin Tools Company’s Spray Gun is produced for excellent atomization and pattern; suitable for both oil and water-based paintings. Nozzle and Needle are precisely made of Stainless Steel for superb performances and long life.
Description
Conventional suction type spray gun, qualified for painting work on construction or industrial purpose.
Equipped with a 1,000c.c. aluminum siphon cup, a spanner and a cleaning brush.
|
Specification
|
Turn – up Kit
|
|||||
|---|---|---|---|---|---|---|
|
Model No
|
Nozzle Size
|
Fluid Output
|
Pattern Width
|
Air Consumption
|
Model No
|
Nozzle Size
|
|
K-800S-13
|
1.3 mm
|
120 ml
|
260 mm
|
190 l/min
|
SG008-800S-13
|
1.3 mm
|
|
K-800S-14
|
1.4 mm
|
165 ml
|
265 mm
|
190 l/min
|
SG008-800S-14
|
1.4 mm
|
|
K-800S-15
|
1.5 mm
|
180 ml
|
265 mm
|
200 l/min
|
SG008-800S-15
|
1.5 mm
|
|
K-800S-17
|
1.7 mm
|
210 ml
|
270 mm
|
200 l/min
|
SG008-800S-17
|
1.7 mm
|
|
K-800S-20
|
2.0 mm
|
250 ml
|
275 mm
|
200 l/min
|
SG008-800S-20
|
2.0 mm
|
|
K-800S-25
|
2.5 mm
|
300 ml
|
275 mm
|
200 l/min
|
SG008-800S-25
|
2.5 mm
|
| • Type : Suction • Cup Capacity : 1000 c.c. • Fluid Inlet : 3/8″ • Air Inlet : 1/4″ |
• Working Pressure : 30~43 psi • Standard Nozzle : 1.7 mm • Gun Weight : 626 gs |
|||||
